Introducing the LS Oil Pump Alignment Tool, a must-have for automotive professionals and enthusiasts dedicated to precision and efficiency in engine maintenance. Designed specifically for LS engines, this innovative tool simplifies the alignment process, ensuring your oil pump is perfectly positioned for optimal performance. With its user-friendly design and durable construction, it streamlines your workflow, reducing setup time and minimizing the risk of misalignment-related issues. Whether you're a seasoned mechanic or a car enthusiast working on your LS-powered project, this alignment tool enhances your toolkit, delivering the accuracy you need to achieve peak engine performance with confidence.

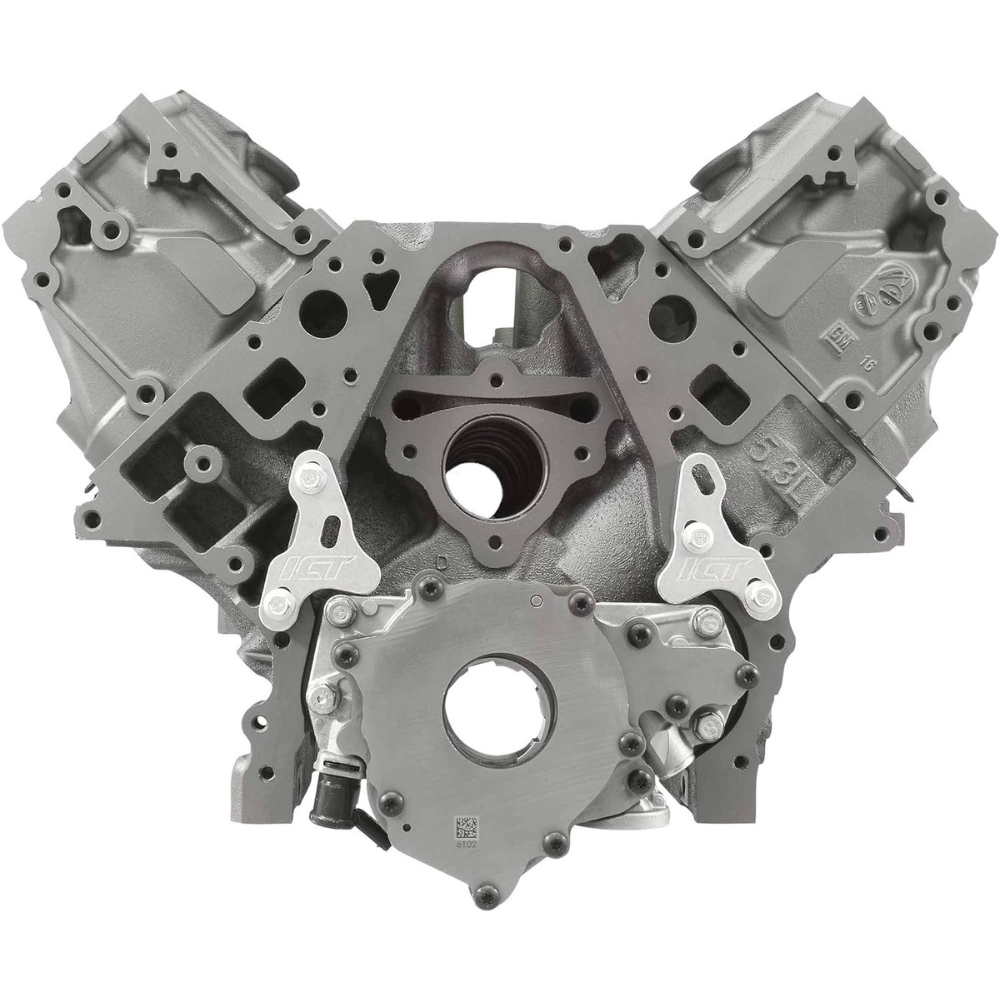

ICT Billet LT Gen V Oil Pump Installation Alignment Guide Kit Tool Compatible with LT1 LT2 L82 L83 L84 L86 L87 L8B LT4 LT5 551904-TL01
- Compatible with all GM Gen V LT series engines from 2014-Present
- Aluminum oil pump installation guides to aid in aligning oil pump onto engine properly
- Machined from USA billet aluminum for perfect accuracy. package includes: 2 installation Guide
- Oil pump alignment is critical when reinstalling oil pump. failure to align the oil pump correctly will result in low oil pressure and/or engine damage
- Made In Wichita, Kansas From Aerospace Grade, USA Billet Aluminum

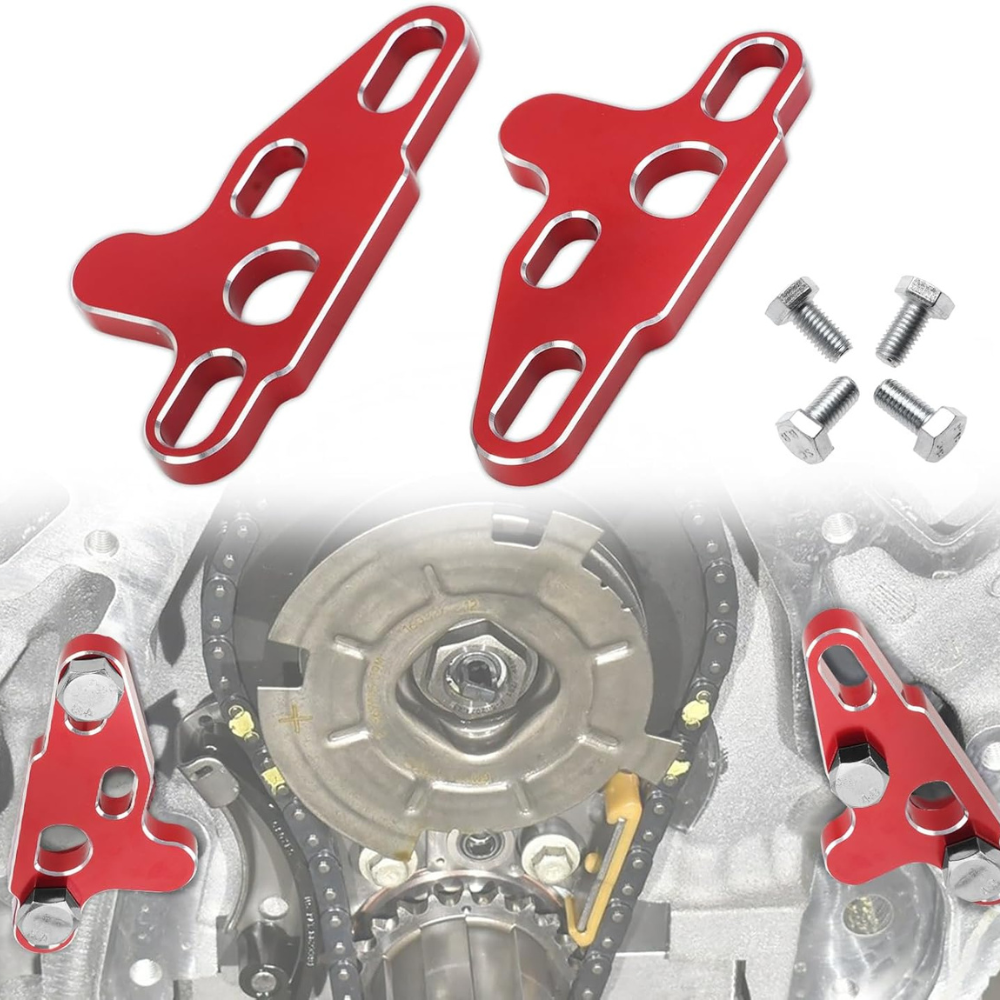

URLWALL Oil Pump Alignment Tool, Gen V Oil Pump Installation Alignment Guide Kit Tool Cam Swap Guiding Tool, Compatible for Gen V LT1 LT4 LT5 L83 L86 L87 Engines (Red)
URLWALL
Oil Pump Alignment Tool, Gen V Oil Pump Installation Alignment Guide Kit Tool
- COMPATIBILITY - The Oil Pump Alignment Tool is compatible for Gen V Lt1 Lt2 Lt4 Lt5 L82 L83 L84 L86 L87 L8B 551904-TL01 engines. The oil pump alignment tools are the thing you need when removing an oil pump. No worry about if the oil pump is straight with the alignment tools.
- UTILITARIAN DESIGN - The factory oil pickup tube on LS engines is only secured by one bolt. This can potentially lead to a poor seal on the oil pump. Our aluminum Oil pump girdle solves the issue by placing a clamp on both sides of the tube, securely holding it in place.
- APPLICATION - Used when temporarily removing an oil pump (such as doing a cam swap), then re-installing the pump. Failure to properly align the oil pump may result in low oil pressure or pump failure. This girdle allows you to secure the pickup tube using both bolt holes to ensure proper oil circulation.
- QUALITY - Made of premium aluminum, aluminum oil pump installation guides to aid in aligning oil pump onto engine properly. The aligning tool has perfect accuracy and durability, great corrosion resistance and harness.
- PACKAGE INCLUDE - 2 Oil Pump Alignment Guide Tools. Perfect when doing a cam swap, these tools mount above the existing oil pump and make it an easy reinstall when putting the oil pump back in the engine.

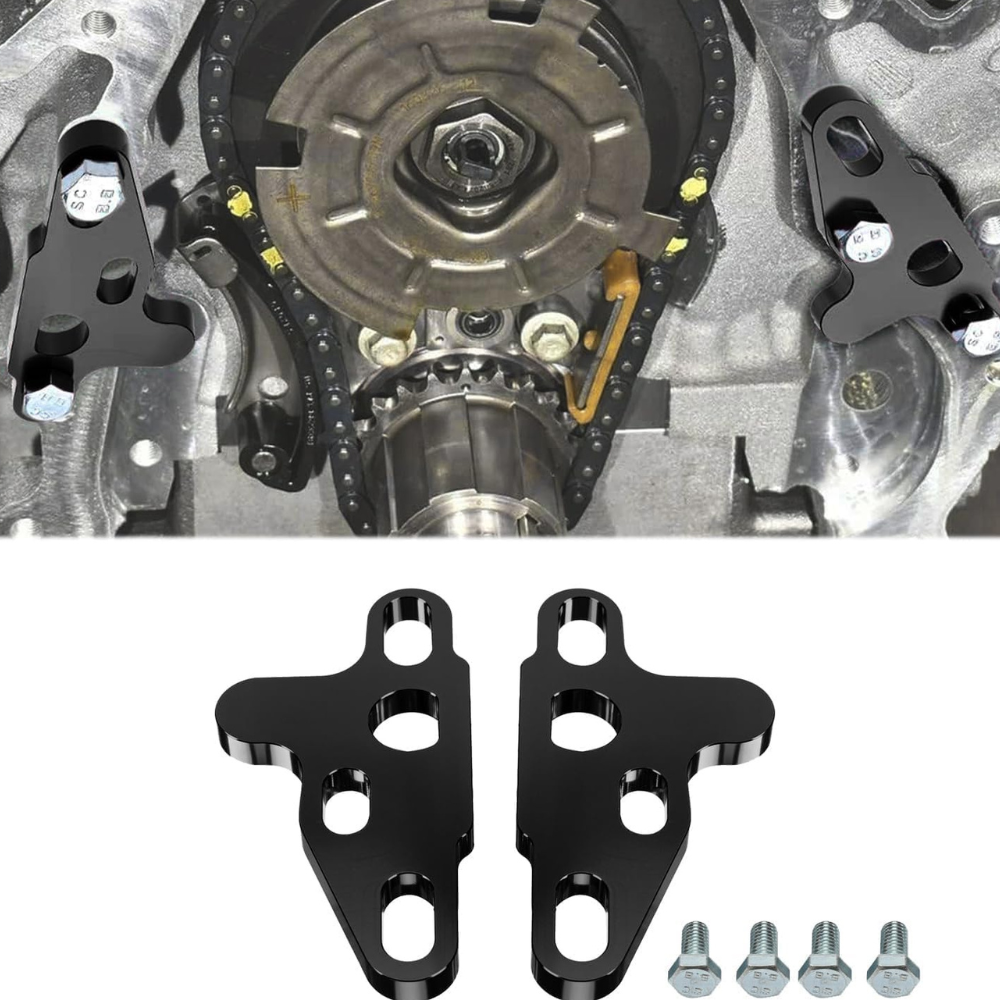

BILLFARO 2Pcs Oil Pump Alignment Tool, Billet Aluminum Oil Pump Guide Kit Tool Cam Swap Pickup Tube Girdle Brace Hold Down Installation Engines Tool for Gen V Lt1 Lt4 Lt5 L83 L86 L87 Engines (BLACK)
- The oil pump alignment tool compatible with for Gen V Lt1 Lt4 Lt5 L83 L86 L87 engines, oil pump alignment is critical when reinstalling oil pump. Failure to align the oil pump correctly will result in low oil pressure and/or engine damage, this girdle allows you to secure the pickup tube using both bolt holes to ensure proper oil circulation. Professional manufacturing, wonderful characteristics and performance.
- The oil pump alignment tool is made of billet 6061aluminium alloy material ,aluminum oil pump installation guides to aid in aligning oil pump onto engine properly, the oil pickup tube on LS engines is only secured by one bolt. This can potentially lead to a poor seal on the oil pump, the billet aluminum Oil pump girdle solves the issue by placing a clamp on both sides of the tube, securely holding it in place.
- The pickup tube is fastened to the oil pump by a single bolt and leaves the other bolt hole unused. Used when temporarily removing an oil pump (such as doing a cam swap), then re-installing the pump. Failure to properly align the oil pump may result in low oil pressure or pump failure. This girdle allows you to secure the pickup tube using both bolt holes to ensure proper oil circulation.

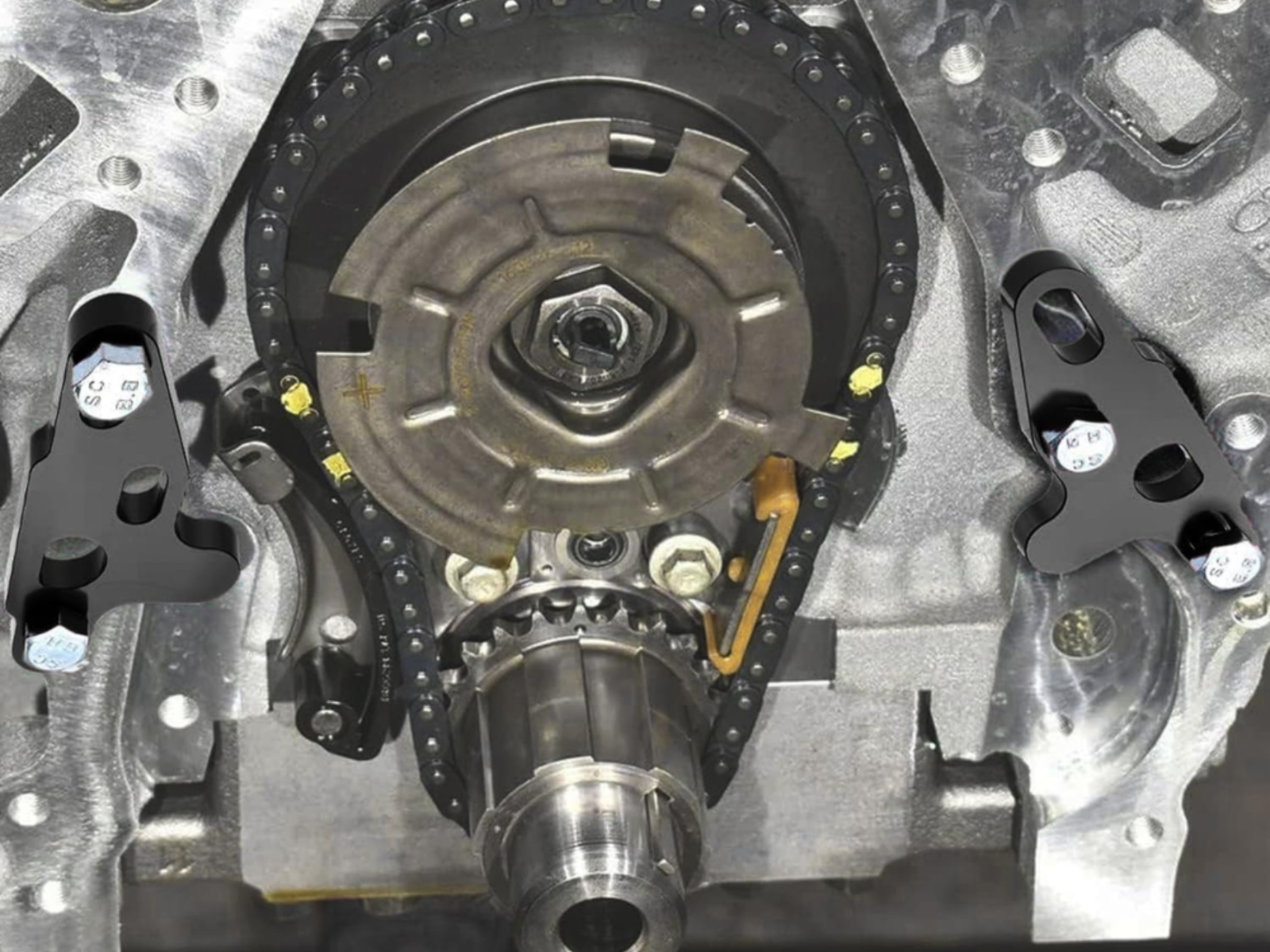

- Easy to install, Install the alignment tools above the existing oil pump, then loosely tighten the tool bolts, slide the tools against the oil pump, then tighten the bolts to keep this position, next after doing your camshaft swap, re-install the oil pump, loosely tighten the oil pump bolts, then slide the oil pump up against the tools, then fully tighten the oil pump
- Billet oil pump alignment tools are the thing you need when removing an oil pump. Perfect when doing a cam swap, these tools mount above the existing oil pump and make it an easy reinstall when putting the oil pump back in the engine. No need to worry about if the oil pump is straight with Billet oil pump alignment tools.
LS Oil Pump Alignment Tool FAQs
Do I need to test fit the new oil pump in the oil pump housing?
- While it is always recommended to double check fitment before final installation, using the billet oil pump alignment tools greatly reduces the need for test fitting. This tool ensures proper alignment during reinstallation, saving time and effort.
Can I reuse the stock bolts instead of purchasing new ones?
- It is always best to use new bolts when reinstalling parts on your engine, as old or worn bolts can cause issues. However, if you choose to reuse the stock bolts, make sure they are properly torqued according to manufacturer's specifications.
Will this girdle work with aftermarket oil pumps?
- Yes, as long as the aftermarket oil pump fits within the same dimensions as the stock oil pump, the billet oil pump alignment tools will work as intended.
Do I need to remove the timing cover to use this tool?
- No, the billet oil pump alignment tools are designed to mount above the existing oil pump without needing to remove any other components. This makes for a quick and simple installation process.
Can I use this tool for multiple engine rebuilds?
- Yes, as long as the billet oil pump alignment tools remain in good condition and fit properly over the existing oil pump, they can be used for multiple engine rebuilds. It is always recommended to inspect the tools before each use to ensure they are still in proper working condition.
Do I need the old pump?
- Yes, the old oil pump is necessary for proper installation and alignment. The billet oil pump alignment tools are designed to fit over the existing oil pump, ensuring correct placement during reinstallation. If you no longer have the old pump, it is important to purchase a new one before attempting to use the alignment tool.
Conclusion
Using billet oil pump alignment tools can greatly improve the efficiency and accuracy of installing an aftermarket oil pump. These tools are designed to make the process easier and more precise, ultimately resulting in better engine performance. While it is possible to reuse stock bolts when reinstalling parts, it is always recommended to use new ones for optimal results. Additionally, inspecting the alignment tools before each use and having the old oil pump on hand will ensure a successful installation. Thank you for choosing our product for your engine rebuild needs! Happy motoring! Order today!
