When it comes to electrical testing and troubleshooting, precision and reliability are paramount. Whether you're a seasoned professional or a curious DIY enthusiast, having the right tools at your disposal ensures both safety and efficiency. One of the most critical components of a multimeter is its test leads. Fluke, a trusted name in the world of electrical measurement, designs high-quality multimeter leads that stand out for their durability, compatibility, and performance. Let's take a closer look at why Fluke multimeter leads are a must-have and how to choose the right ones for your application.
Why Multimeter Leads Matter
Your multimeter can only perform as well as the leads you use with it. Test leads are the vital bridge between the multimeter and the circuit you're measuring. They carry the electrical signals from the source to your device, providing the data you rely on. Poor-quality leads can result in inaccurate readings, increased wear and tear on your multimeter, or even safety hazards during testing. That's why investing in high-quality leads, like those from Fluke, is a smart choice.
Key Features of Fluke Multimeter Leads
- Durability That Stands the Test of Time Fluke multimeter leads are built to last. Made with high-quality materials, these leads are designed to withstand heavy usage, rough environments, and temperature extremes. The strain relief components on Fluke leads also protect against wire breakage, ensuring they perform reliably even in demanding situations.
- Outstanding Compatibility Fluke leads are designed to pair seamlessly with Fluke multimeters, ensuring perfect fit and optimal performance. Whether you own a basic digital multimeter or a high-end model, you'll find leads that work effortlessly with your device. This compatibility means you won't have to worry about loose connections or inaccurate readings due to mismatched accessories.
- Safety You Can Depend On With electrical testing, safety is non-negotiable. Fluke multimeter leads are designed to meet high safety standards, including CAT (Category) ratings. These ratings indicate the level of electrical hazard protection the leads offer. Fluke leads often come with insulated tips, shrouded connectors, and built-in features to reduce the risk of accidental shorts. This makes them ideal for testing in professional settings as well as home repairs.
Choosing the Right Fluke Multimeter Leads for Your Needs
With so many options available, selecting the right leads might seem overwhelming. Here are some tips to help you make the right choice:
1. Understand Your Measurement Needs
Consider the type of testing you'll be doing. Will you measure voltage, current, or resistance? Is your work environment industrial, residential, or automotive? For instance:
- If you're working on high-voltage circuits, opt for leads with a high Category rating (CAT III or CAT IV).
- For intricate electronics, consider fine-point leads like the Fluke TL910, which allow precise contact with small components.
2. Look for Specialty Tips
Fluke offers a range of test lead sets with specialized tips. For example:
- Alligator clips: Ideal for hands-free measurements when you need a stable connection.
- Needle probes: Great for piercing through insulation or making contact in tight spaces.
- Spring hooks: Perfect for connecting to small points without slipping.
3. Prioritize Flexibility and Length
Consider the work environment. Leads with extra length and flexibility (like silicone-insulated wires) are perfect for maneuvering around obstacles or working in cramped spaces. Silicone insulation is also more resistant to heat and cold than PVC, making it a practical choice for professionals.
4. Kit Options for Versatility
If your projects vary, invest in a Fluke test lead kit. Kits like the Fluke TLK287 contain a variety of test leads, adapters, and accessories, providing versatility for different applications.
Why Fluke Leads are Ideal for DIY Enthusiasts and Professionals
For professionals who need dependable tools to handle high-stakes tasks, Fluke multimeter leads provide peace of mind and accuracy. For hobbyists venturing into DIY electrical projects, these leads offer a worry-free experience and solid performance. Their user-friendly design, coupled with robust safety features, ensures that both groups can tackle their projects confidently.

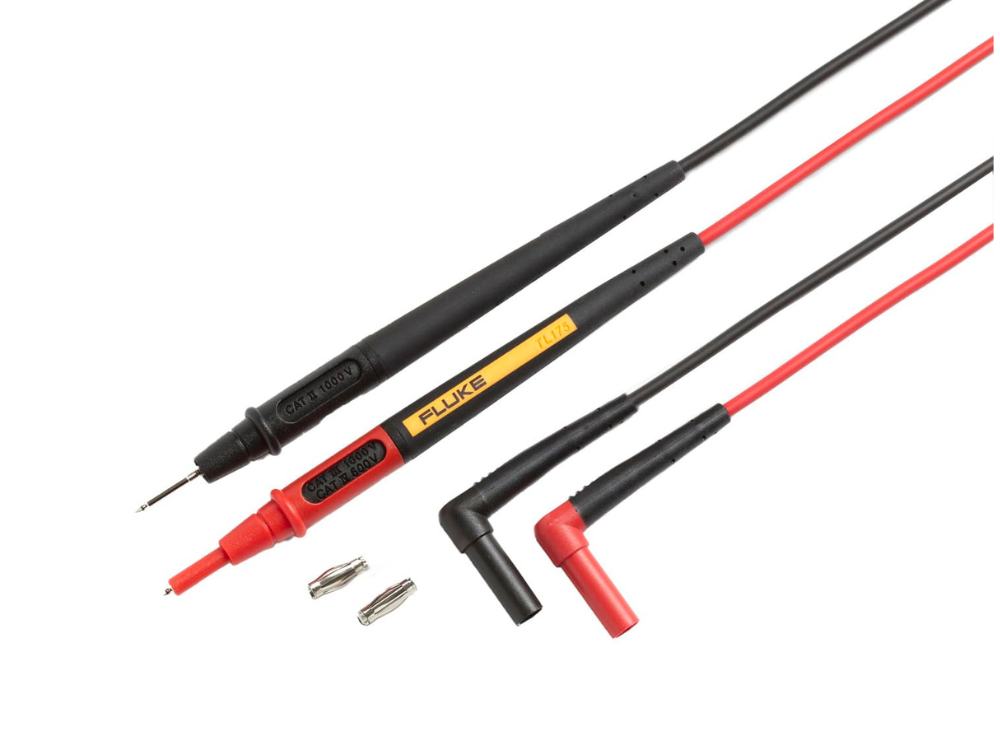

Fluke TL175E TwistGuard Double Insulated Silicone Test Lead Set with Removable 4mm Lantern Tips, 2mm Diameter Probe Tips
- Twist guard, adjustable tips enhance safety and versatility length; Includes removable 4-millimeter lantern tips that thread onto the lead tip
- WearGuard indicator shows damage to leads
- Heavy-duty strain relief withstands over 30000 bends
- Probes always show the correct category rating for the tip being used

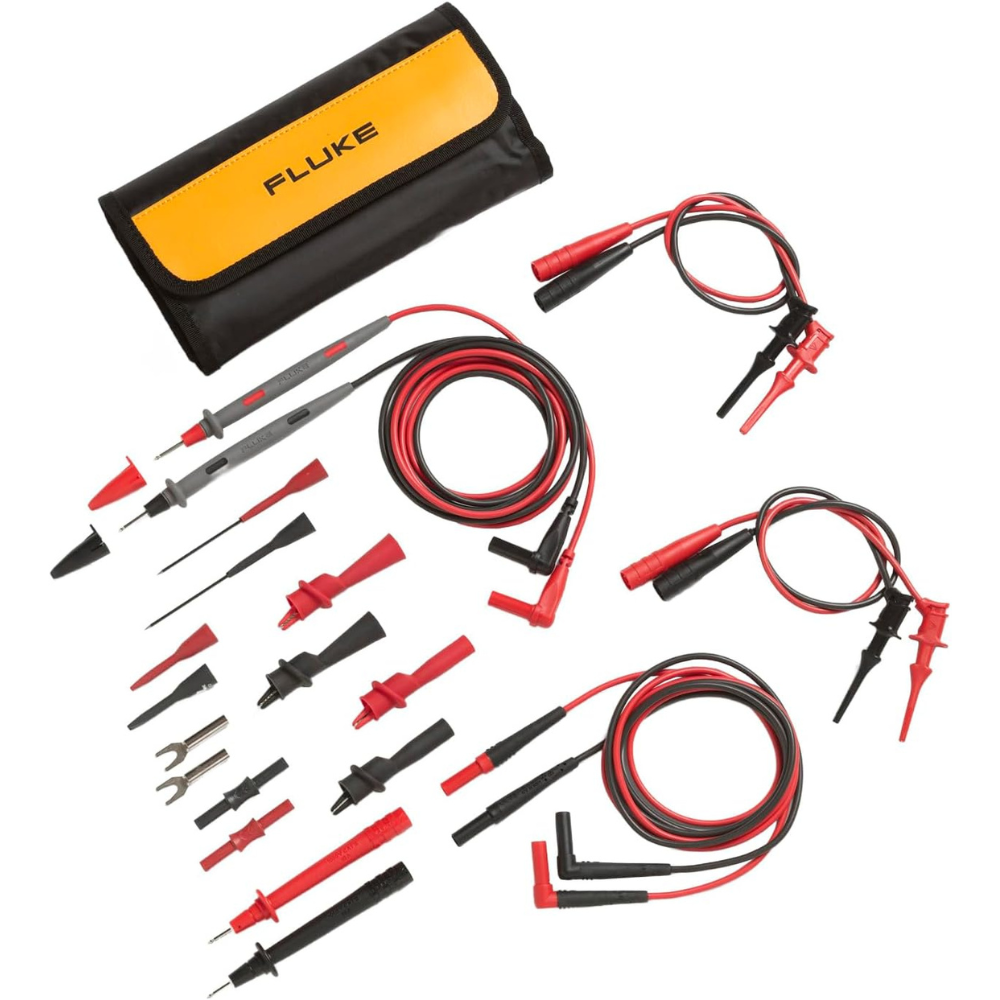

Fluke TL81A Test Lead Set, Deluxe Electronic, Red/Black, Small
- 3 test leads (red, black, green) connected to low-leakage probes
- 3 alligator clips (red, black, green)
- 2.6m lead length
- 26mm maximum jaw opening
- Replacement test lead set for the fluke 1550B MegaohmMeter
- Silicone-insulated leads have superior flexibility in cold temperatures and resistance to high temperatures
- Insulated alligator clip rated up to 5A
- Slide-on IC probe tip adapter (rated up to 3A) and test lead couplers
- Bare spade lug with banana connector, rated up to 10A
- CAT III 3000-volt, compatible with Fluke and other multimeters that accept safety shrouded, standard diameter banana connectors

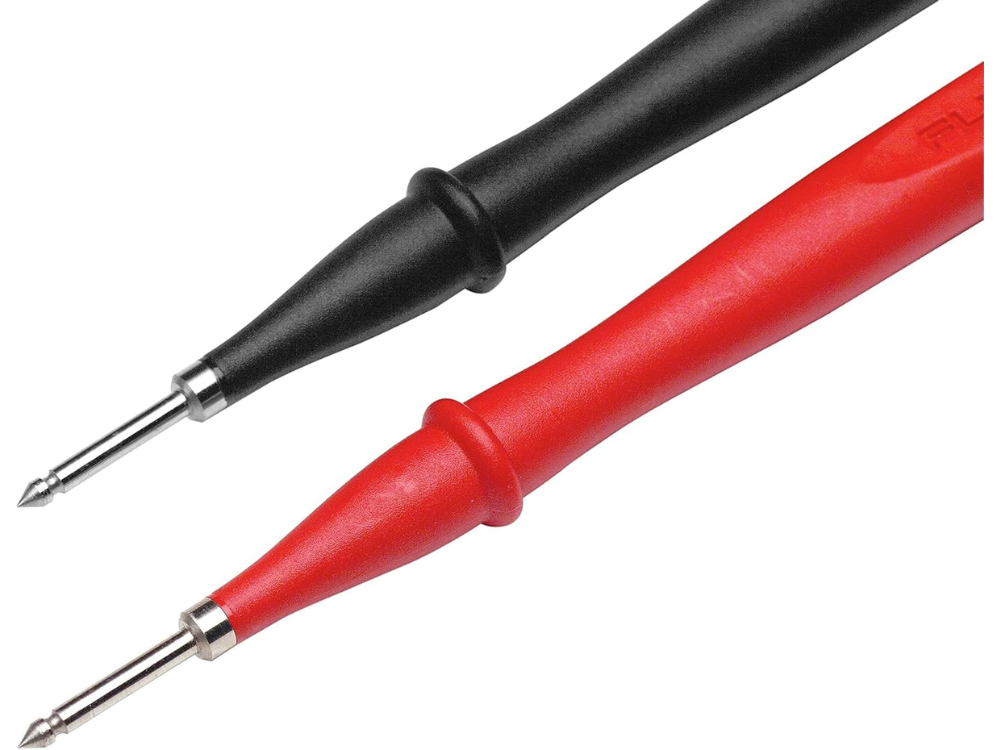

Fluke TP2 2 Piece Slim-Reach Test Probe Set with Stainless Steel Tip, 1000V Voltage, 10A Current, 2mm Tip Diameter
- One pair (red, black) of slender probe bodies for probing closely spaced or recessed terminals
- Hard stainless steel probe tips
- 2 2-millimeter diameter tips for electronics work also compatible with AC72
- Cat iv 600v, cat iii 1000v, 10 a rating, ul listed

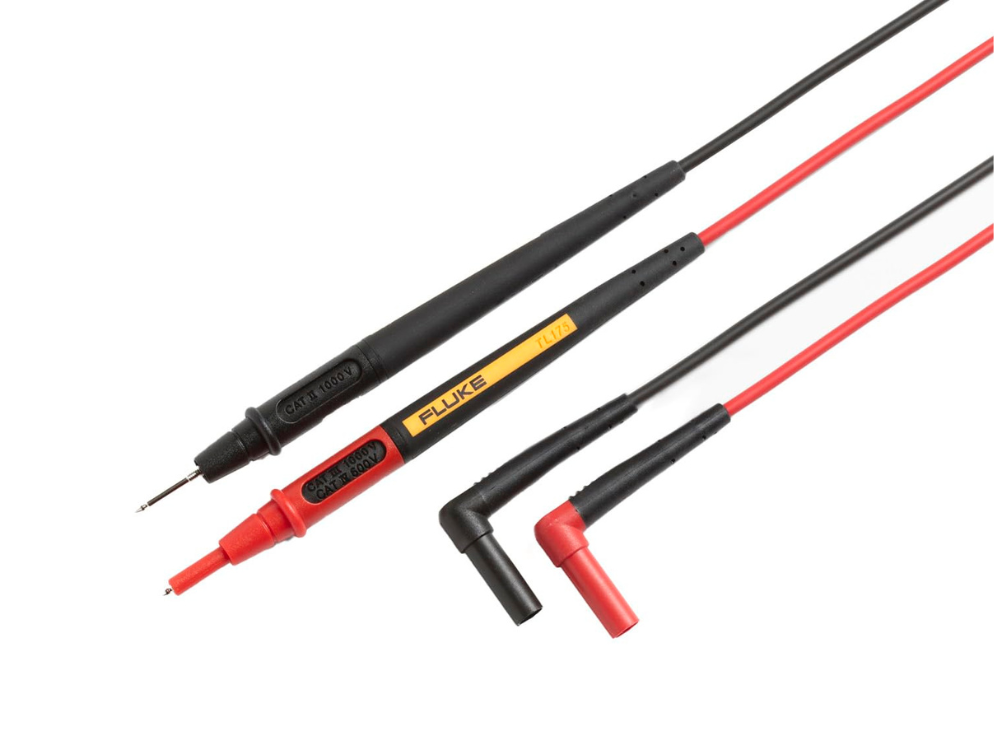

Fluke TL175 Twistguard Test Leads, 2 mm Diameter Probe Tips
- The patented TwistGuard extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements
- New WearGuard lead wire wear indication. Two layers of silicone insulation cover each test lead; the inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
- Double insulated silicone leads; TL175 test leads withstand high temperatures and remain flexible in cold temperatures
- Extra heavy-duty strain relief on both probe end and plug end, tested beyond 30,000 bends without failure
- Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs

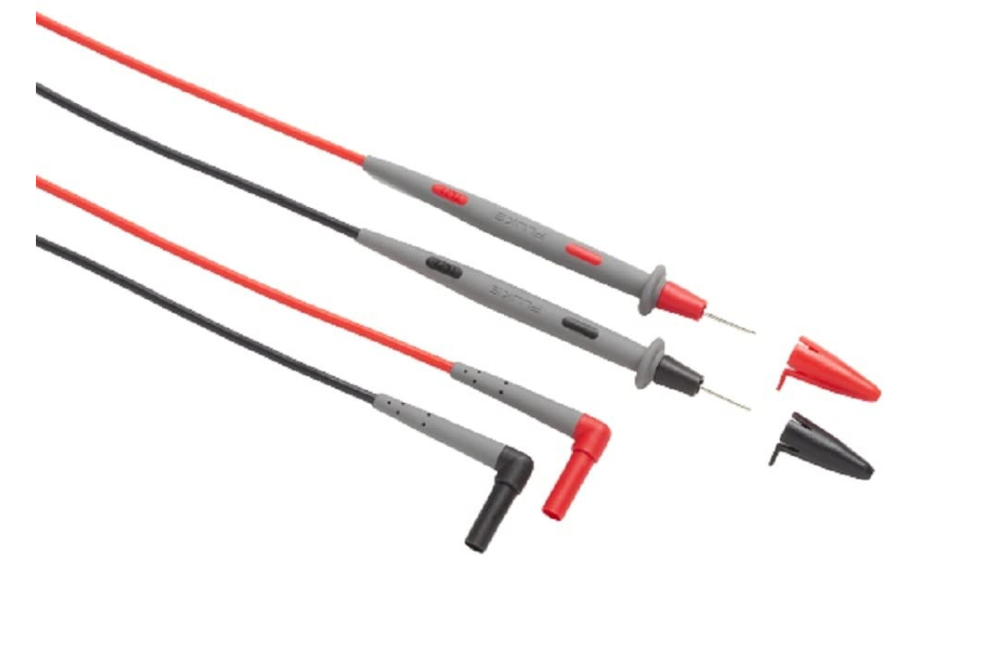

Fluke TL71-1 TL71 Premium Test Lead Set, Right Angle
- Kit includes One pair of comfort grip probes with right-angle test leads
- WearGuard indicator exposes contrasting colors when damaged
- Compatible with all instruments that accept standard 4 mm (0.16 in) shrouded banana connectors
- One pair (red, black) of test leads
- Recommended for µV measurements
- Extra hard probe tips to provide a long service life
- Flexible silicone leads
- Cat IV 600 V, CAT III 1000 V, 10 A rated and UL listed
Fluke Multimeter Leads FAQs
What is the difference between Fluke TL175 and TL71-1 test leads?
The Fluke TL175 features patented TwistGuard extendable tip shrouds for improved safety and versatility. It also has an extra heavy-duty strain relief design that can withstand up to 30,000 bends without failure. The TL71-1 has a right-angle design for easier access in tight spaces and extra hard probe tips for longer service life.
What is the correct voltage probe for Scopemeter 190?
The correct voltage probe for Scopemeter 190 is the Fluke VPS410-V. This probe has a bandwidth of 100 MHz, a CAT III 600V safety rating, and a set of accessories including grabber clips and ground leads. It is also compatible with other Fluke multimeters and scopemeters. So, you can use it for various electrical measurement tasks. Additionally, make sure to always refer to the user manual or contact Fluke directly for any specific compatibility questions about your instrument and silicone-shielded test leads.
Can I use Fluke multimeter leads on non-Fluke instruments?
Yes, Fluke multimeter leads are designed with universal input jacks and can be used on most multimeters, including non-Fluke brands. However, it is always important to check the specifications and safety ratings of your multimeter before using any test leads to ensure safe and accurate measurements.
Are Fluke multimeter leads UL listed?
Yes, all Fluke multimeter leads are UL-listed which means they have been tested and certified by Underwriters Laboratories for meeting safety standards. This ensures that the leads meet the required electrical safety standards and provide reliable results when used with Fluke or other compatible instruments.
What does CAT III 1000V mean?
CAT III 1000V refers to the voltage rating of a test lead, indicating its ability to withstand high voltage levels up to 1000V. UL assigns this rating and signifies that the test lead can safely be used for electrical measurements on equipment with a maximum voltage of 1000V, such as electronic circuits and power distribution systems.
How do I properly use multimeter leads?
To properly use multimeter leads, first make sure your instrument is turned off and set to the appropriate measurement function (voltage, resistance, etc.). Then, insert the black lead into the COM jack and the red lead into the VΩ jack. Next, connect the test leads to the circuit or component you wish to measure. Finally, turn on your instrument and take your measurements.
What is a Fluke 1730 energy logger?
The Fluke 1730 energy logger is a compact, three-phase power and energy logger designed to help identify opportunities for energy savings, perform load studies, and optimize equipment performance. It can record over 500 different parameters including voltage, current, power, and power quality measurements.
Can I use Fluke leads with other brands of multimeters?
Yes, Fluke leads are compatible with most instruments that accept standard 4 mm shrouded banana plugs. However, it is always recommended to check the specifications of your instrument to ensure compatibility before use.
Are Fluke multimeter leads safe for high-voltage measurements?
Fluke multimeter leads come with various safety ratings such as CAT III and CAT IV, which indicate the maximum voltage levels they can safely handle. It is crucial to select the appropriate lead for your specific measurement needs and ensure that it is rated for the voltage level you will be testing.
What is a Fluke TPAK magnetic hanger?
The Fluke TPAK magnetic hanger is a versatile accessory that allows you to hang your multimeter or other test tools securely during hands-free operation. It has a powerful magnet with a hook design that can attach to any steel surface, making it ideal for use in industrial, commercial, and residential settings. Additionally, the TPAK also comes with a strap attachment option for non-magnetic surfaces.
Do I need multi-stacking 4 mm banana plugs?
Multi-stacking 4 mm banana plugs are useful when you need to connect multiple test leads to a single multimeter input or output. They allow for easy and organized connection of multiple wires, saving time and reducing potential errors. If you frequently work with complex electrical systems involving multiple connections, multi-stacking 4 mm banana plugs can be a helpful tool in your kit.
Can I use Fluke multimeter leads for temperature measurements?
Yes, Fluke offers a range of thermocouples and RTD probes that can be used with their multimeters for accurate temperature measurements. These probes are designed to withstand high temperatures and harsh environments, making them suitable for various industrial applications.
Can I test three-phase electric with a Fluke multimeter?
Yes, Fluke multimeters can test three-phase electric systems. However, it is important to note that special adapters or accessories may be needed depending on the specific model of your Fluke multimeter. It is always recommended to consult the user manual and follow proper safety protocols when testing three-phase electric systems. three-phase voltage connection cable for the Fluke Power and Energy Loggers.
How do I properly maintain my Fluke multimeter leads?
To ensure accurate and safe measurements, it is essential to regularly check and maintain your Fluke multimeter test probe leads. Verify the test lead for connecting the double insulated voltage probe for an insulated silicone shielded test.
Do test probes have a fuse?
The Fluke FTPL SureGrip™ Fused Test Probes and Lead Set In response to new ESA guidelines, Fluke introduces test probes with built-in fuses for additional safety.
Final Thoughts
Fluke multimeter leads combine durability, compatibility, and exceptional safety features, making them a trusted companion for electrical professionals and DIYers alike. Suregrip accessories are designed to improve steadiness in slippery situations, steadiness in slippery hands is a dangerous thing. Whether you want proBy selecting high-quality test leads and caring for them properly, you'll protect your equipment and improve the accuracy and safety of your measurements. Whether you're troubleshooting a complex industrial circuit or testing a simple home appliance, Fluke's test leads ensure you have a reliable connection every step of the way. Invest in quality, and prioritize safety, and you'll have a toolset ready for anything life throws your way. Order today!
