The LS Ignition Controller is a state-of-the-art electronic device that plays a crucial role in the automotive industry. This advanced ignition controller is used to manage the ignition system of internal combustion engines, which is responsible for starting and powering the engine. The LS Ignition Controller is specifically designed for LS-based engines, popular in high-performance cars and trucks.
The LS Ignition Controller offers several advanced features that make it stand out. It has a powerful microprocessor that can control the ignition timing, fuel injection, and other critical engine parameters with high precision. The controller also has a built-in data logging system that can store vital engine data for analysis and tuning.
Moreover, the LS Ignition Controller is user-friendly and easy to install, making it an ideal choice for both professional mechanics and DIY enthusiasts. It is designed to work seamlessly with other engine management systems, like EFI (Electronic Fuel Injection), and can be easily programmed using a laptop or a handheld device.
Overall, the LS Ignition Controller is a game-changer in the automotive industry, providing better engine performance, improved fuel economy, and enhanced reliability. It is a must-have for anyone looking to get the most out of their LS-based engine.
MSD 60143 Ignition control, timing/rev LS, Black
Designed to fit most LS engines, our product offers basic functionality without the need for a PC. With six preprogrammed timing tables and a rotary selector switch for on-the-fly timing changes, set up is a breeze. It is also compatible with nitrous and boost applications, ensuring versatility. Experience high-speed data acquisition and fully sealed direct plugin connectors for a reliable connection. Our product also features programmable step retard, launch and max rev limiters, idle timing control, and individual cylinder timing. Explore our offering for enhanced performance and efficiency.

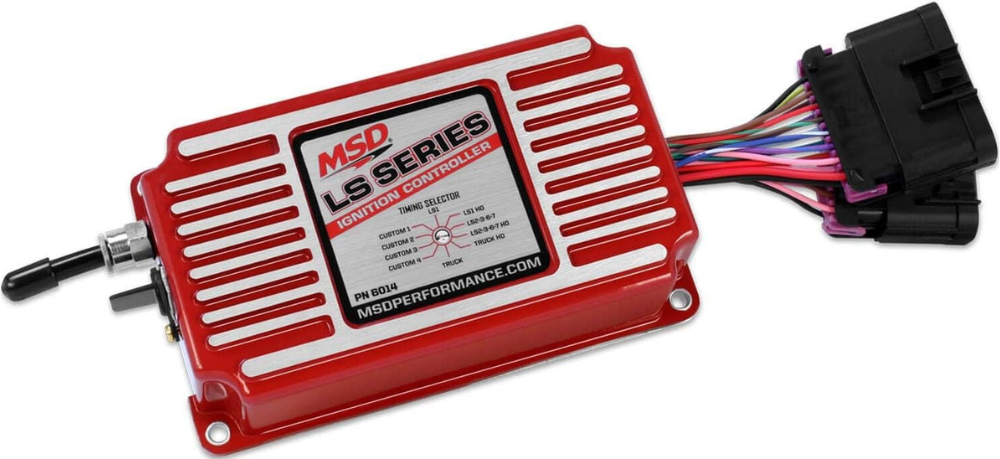

MSD LS IGNITION CONTROL BOX, RED, COMPATIBLE WITH GM LS ENGINES
The popularity of GM LS engines is on the rise, leading to an increased demand for a powerful, reliable, and adaptable ignition system. MSD has responded with an updated and improved version of their popular 6LS box. Whether you're using a stock crate engine or building a custom powerhouse, this Ignition Box provides the control you need to achieve optimal performance. You can easily dial in the perfect tune for your LS engine using the adjustable preset timing curves or program a custom setup with MSD View software. The new features of the LS Ignition include high-speed data acquisition, optional coolant temperature sensor input, idle timing control, and individual cylinder timing. In addition, it retains the existing programmable step retard, launch retard, and RPM rev limiters from its predecessor.
Please note the following:
- This ignition system can be installed on both 24x and 58x crank trigger engines.
- It is compatible with both carbureted and fuel-injected engines.
- However, it does not control fuel.
- Part #6014 replaces Part #6010 and Part #6012.
- An optional coolant temperature sensor is available (GM Part #12608814).
This ignition system fits most LS engines and offers easy setup with its six pre-programmed timing tables. You can make timing changes on the fly using the rotary selector switch. It is also nitrous and boost compatible, features fully sealed direct plugin connectors, and offers programmable step retard, launch and max rev limiters. Additionally, it supports optional coolant temperature sensor input, launch retard, idle timing control, and individual cylinder timing. It is compatible with all MSD, Accel, and GM LS coils.
Upgrade your GM LS engine with the enhanced performance and reliability of the MSD LS Ignition system.
LS Ignition Controller FAQs
What ignition control do I need for a stock crate engine?
For a stock crate engine, you can use the MSD LS Ignition system without any additional modifications. It is designed to work with most LS engines and offers six pre-programmed timing tables for easy setup. However, it is important to note that this system does not control fuel, so you will need a separate fuel management system if your engine is fuel-injected.
If the LS Ignition Controller includes the optional coolant temperature sensor does it change the intake manifold pressure?
No, the optional coolant temperature sensor does not change the intake manifold pressure. It only measures and monitors the engine's coolant temperature to provide more accurate timing control. The LS Ignition Controller does not have any impact on intake manifold pressure. So, you can still use it for nitrous and boost applications without any issues.
Can I use this system with the correct configuration aftermarket reluctor wheel pattern?
Yes, the MSD LS Ignition system is compatible with aftermarket reluctor wheel patterns as long as they have a 24x or 58x timing pattern. These are the most common patterns used in GM LS engines. The system also allows for custom programming of ignition timing based on your specific reluctor wheel pattern.
How do I adjust the launch and rev limiters on the LS Ignition Controller?
The launch and rev limiters can be adjusted using the MSD View software, which is included with the system. This software allows for easy adjustment of multiple parameters, including launch timing retard, launch RPM limiter, and rev limiter settings. You can also use a handheld controller to make these adjustments on the go.
Conclusion
Since the GM LS engines are the workhorse of the "Hot Rod" moving into the next century, whether it's naturally aspirated or running boost, MSD LS Ignition provides the spark to release a monster engine power curve that will put a smile on any gearhead's face. Give your custom powerhouse the MSD jolt it needs, order yours today!
