Stick welding, officially known as Shielded Metal Arc Welding (SMAW), is a widely used welding process that involves the fusion of metals using an electric arc. The basic principle of stick welding relies on generating an electric arc between a consumable electrode and the base metal, which melts the metals and allows them to fuse together upon cooling.
The process begins by striking an arc, similar to lighting a match, which occurs between the tip of the electrode (the stick) and the workpiece. As the arc is maintained, the intense heat melts both the electrode's core and the workpiece's surface. The electrode is coated with a flux that disintegrates during welding, producing a gas that shields the molten pool from atmospheric contamination and forming a slag layer that protects the weld as it cools.
The equipment required for stick welding is relatively simple and portable, consisting of a welding power supply, electrode holder, ground clamp, and the appropriate electrodes. Stick welding machines can be powered by either AC or DC current, offering flexibility depending on the application and material being welded.
Stick welding is commonly used in construction, repair, and maintenance work across various industries, including shipbuilding, pipelines, and structural steel. Its versatility makes it ideal for welding ferrous and non-ferrous metals across different thicknesses and positions.
Advantages of stick welding include its portability and simplicity, as well as its ability to perform well even in windy or outdoor conditions where other welding methods might struggle. It is also effective on rusted or dirty surfaces, reducing the need for extensive preparation.
However, stick welding has its disadvantages. It generally requires more skill to produce a clean weld without defects such as slag inclusions or porosity. The process is also slower compared to other methods like MIG or TIG welding, and it often results in higher levels of spatter, necessitating more cleanup.
Overall, stick welding remains a popular choice for many applications due to its flexibility, cost-effectiveness, and suitability for fieldwork, despite the learning curve and post-weld cleanup involved.

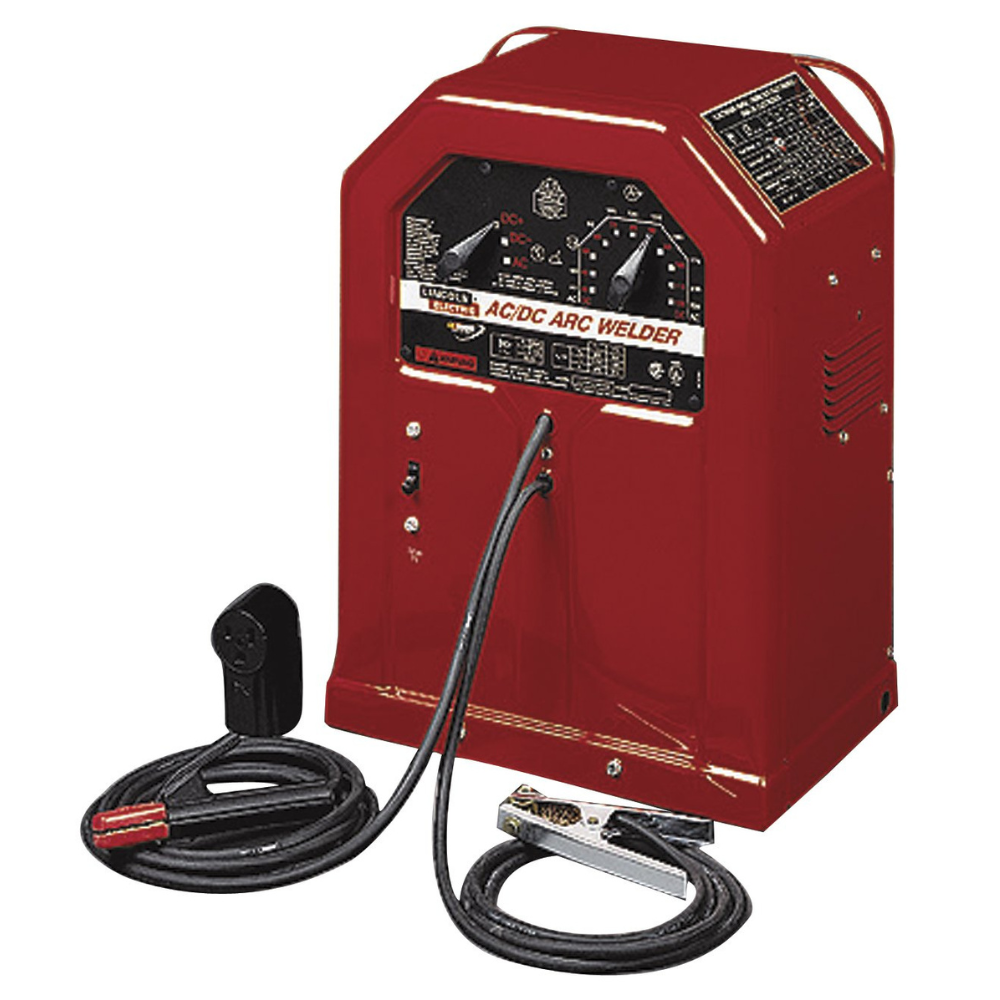

Lincoln Electric Stick Welder, 225AC/125DC, 230V, 50A, OCV 79, L (K1297)
- Occupational Health & Safety
- Country of Manufacturer: United States
- Manufacturer: Lincoln Electric
- Ideal for farm, shop, and home use where improved arc welding performance is desired
- 40-225 amps AC, 30-125 amps DC output range
- Welds metals of 16 gauge and heavier, welds steel, cast iron, and stainless steel
- Easy to install, comes with attached input power cable and plug
- 3 year part and labor warranty
- Broad welding amperage range of 40A to 225A
- Versatile use, designed for operation with metals 16-gauge & heavier
- Powerful welder, smooth AC arc & can be used with a wide variety of metal
- Great for use with a variety of variety of metals, including stainless steel, steel & cast iron
- Output Range: 40-225 Amps AC
- Welds metals 16 gauge and heavier
- Welds steel, cast iron, and stainless steel
- 3 year part and labor warranty
- 225 Amp

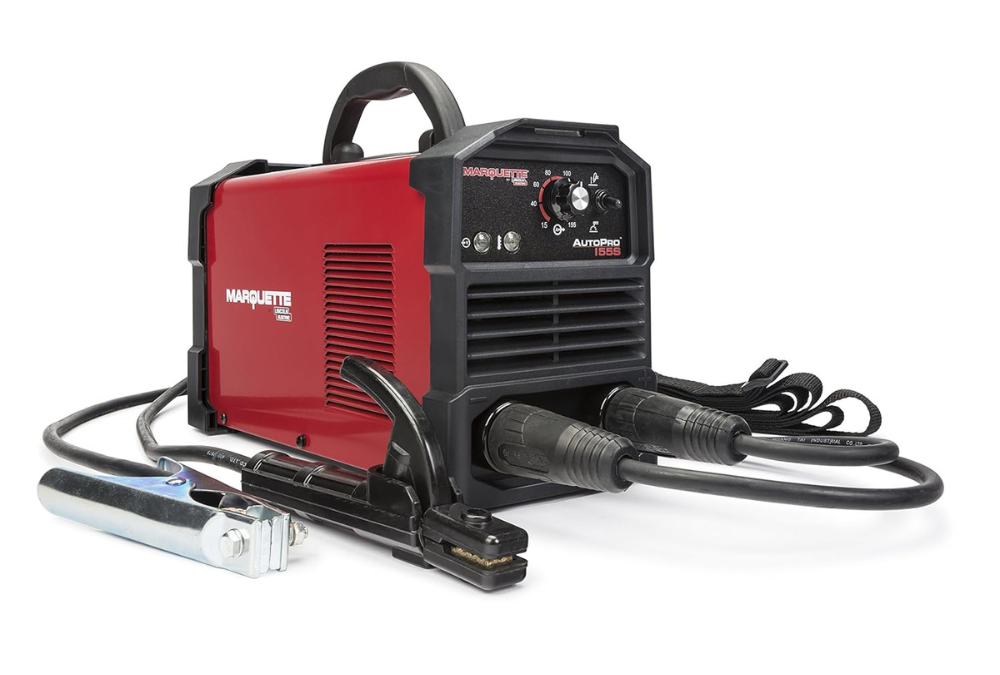

Lincoln Electric K3291-2 Autopro 155S, 15" Height, 10"width, 19" Length
- The Autopro 155S uses solid state, inverter based technology to produce the same results as a transformer based ac stick welder
- 30-155 amp welding output range is enough for many tasks
- Includes: 10' work cable & clamp, 10' electrode holder, shoulder strap for portability, 6' input cable, instruction manual
- item package weight: 27.1 pounds
Lincoln Stick Welder FAQs
What materials can be welded with a stick welder?
- Stick welders are versatile and can be used to weld a variety of materials, including steel, cast iron, and stainless steel. They are ideal for welding metals 16 gauge and heavier.
Can I use a stick welder for home or farm use?

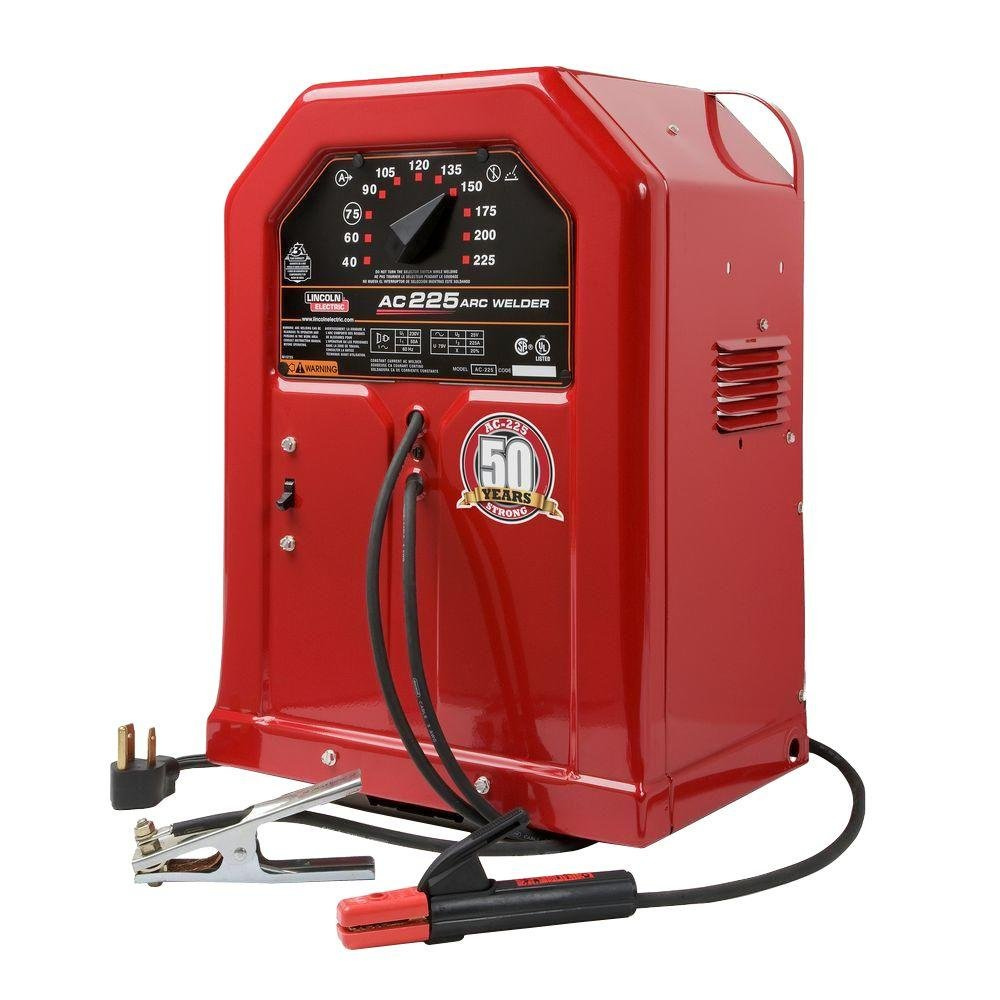

- Yes, the Lincoln Electric K1170 AC225 Arc Welder is designed for easy installation and is great for home, shop, or farm use where improved arc welding performance is desired.
How powerful is the Lincoln Electric K3291-2 Autopro 155S?
- The Autopro 155S uses solid state inverter technology to produce the same results as a transformer based AC stick welder with an output range of 30-155 amps.
Does the Lincoln Electric K1170 AC225 Arc Welder come with a warranty?
- Yes, the unit comes with a 3-year parts and labor warranty for added peace of mind.
What is included in the package when purchasing the Lincoln Electric K3291-2 Autopro 155S?
- The package includes a 10' work cable and clamp, 10' electrode holder, shoulder strap for portability, 6' input cable, and an instruction manual.
Is the Lincoln Electric K1170 AC225 Arc Welder portable?
- Yes, at only 19" in length and weighing just over 27 pounds, this welder is easily portable and can be taken to different job sites or used in a variety of locations.
Can I use the Lincoln Electric K3291-2 Autopro 155S on a standard household outlet?
- No, this welder requires a power input of 230 volts and cannot be powered by a standard household outlet. It is recommended to consult with an electrician before setting up the welder to ensure proper power source and usage.
Are there any safety precautions I should take when using these welders?
- Yes, it is important to always wear protective gear when welding, including gloves, a welding helmet, and appropriate clothing.
Conclusion
The 225 is the best AC machine to weld mild steel or low alloy metal. The machine gives you access to the quality of the weld and helps the rust prevention when you strike an arc and watch it running on the metal. It is also important to note that proper maintenance and usage of these welders are crucial in ensuring their longevity and safety.
Follow the instruction manual provided by Lincoln Electric, and always consult with a professional if you have any doubts or concerns about using your welder. With its portability, warranty, and range of features, the Lincoln Electric K1170 AC225 Arc Welder is a reliable and versatile option for any welding needs. So whether you're a beginner or an experienced welder, this machine can help you achieve professional results with ease. Get yours today!
