Chicago Pneumatic has established itself as a leading manufacturer of high-quality air compressors, designed to meet the needs of various industries. Renowned for their durability, efficiency, and innovative engineering, these air compressors are essential tools for businesses ranging from automotive repair shops to large-scale manufacturing plants.
Key Features
- Durability: Built with robust materials, Chicago Pneumatic air compressors are designed to withstand harsh working conditions and deliver consistent performance over time.
- Efficiency: Advanced engineering ensures that these compressors operate with optimal energy efficiency, reducing operational costs and environmental impact.
- Versatility: With a wide range of models and configurations, Chicago Pneumatic air compressors can be tailored to meet the specific requirements of different applications, whether they involve light-duty tasks or heavy industrial use.
- Innovative Technology: Equipped with the latest technological advancements, including smart controls and variable speed drives, these compressors offer enhanced control and reliability.
Applications
Chicago Pneumatic air compressors are utilized in various sectors, including:
- Automotive Industry: For powering pneumatic tools, spray painting, and tire inflation.
- Construction: Essential for operating jackhammers, drills, and other construction equipment.
- Manufacturing: Provides the required air pressure for assembly lines, CNC machines, and other industrial processes.
- Healthcare: Used in medical facilities for applications such as operating ventilators and other critical life-support systems.

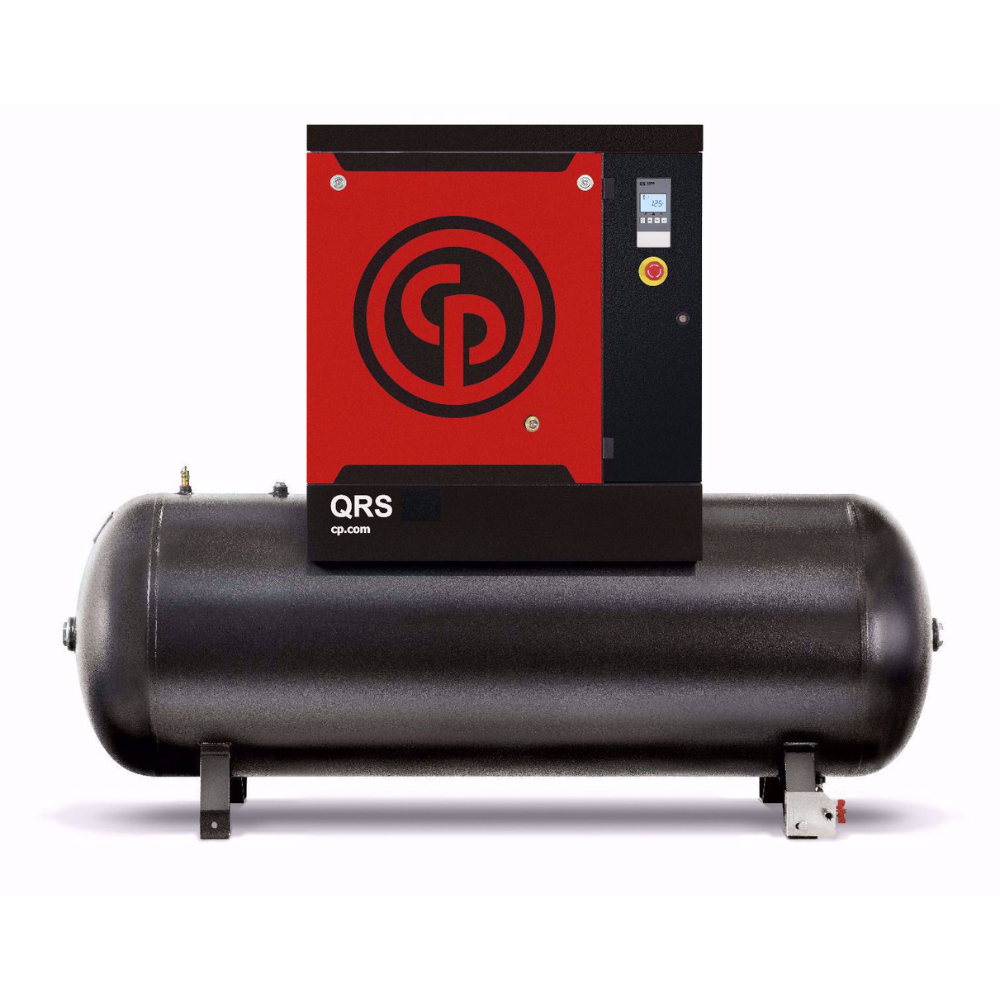

Chicago Pneumatic Quiet Rotary Screw Air Compressor with Dryer - 10 HP, 230 Volts, 3 Phase, Model# QRS10HPD-150
The Quiet Rotary Screw (QRS)
The QRS Series is a single-stage, air-cooled, oil-injected rotary screw air compressor package. The compressor package includes the rotary screw air compressor element, main drive motor, air and oil system, filters, oil cooler, cooling fan, and electro-pneumatic regulating control. The QRS rotary screw compressor is designed for continuous duty operation, at full compressor output without affecting the compressor life.
Engineered for high performance, efficiency, and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, Industrial manufacturing facility, vehicle body shop, paint shop, or automotive dealership. With its whisper-quiet design, the QRS can be installed almost anywhere and an optional mounted dryer (with tank mounted option only). The QRS is the leading rotary screw compressor for light industrial applications.
Standard Features:
- Low sound enclosure
- Integrated Refrigerated Air Dryer
- Continuous operating capability
- ASME/CRN receiver tank
- Start/stop operation
- UL, cUL and CSA approved control panel
- 5 year warranty with authorized start-up
- Spin-on oil filter and separator
- NEMA 1 electrical protection
- Vibration isolated assembly
Specifications:
- 35.2 ACFM @ 150PSIG
- 65 dBa
- 132 Gallon Air Receiver
- Estimate Ship Weight: 679 Lbs
The Chicago Pneumatic QRS Rotary Screw Air Compressor is a type of air compressor designed for industrial and commercial applications. It is a stationary, electrically powered compressor that uses a rotary screw to compress air. Here are some key features and specifications of the Chicago Pneumatic QRS Rotary Screw Air Compressor:
- Available in both 60 Hz and 50 Hz models with various voltages (e.g., 208-230V/460V/575V for 60 Hz)
- Horsepower range: 5-30 HP (horsepower)
- Capacity range: 15.2-124.3 CFM (cubic feet per minute)
- Maximum working pressure: 125-175 PSI (pounds per square inch)
- Air-cooled design with a built-in aftercooler to remove moisture from the compressed air
- Sound levels ranging from 64 to 71 dBA (decibels)
- Comes with an advanced control system (Q-Controller) that allows for easy monitoring, diagnostics, and adjustment of compressor settings
- Designed with a compact footprint and a small installation footprint to save space in your facility
The Chicago Pneumatic QRS Rotary Screw Air Compressor is a reliable and energy-efficient compressor that can help improve the productivity and efficiency of your operations. It is suitable for a wide range of applications, including automotive, manufacturing, woodworking, and more.

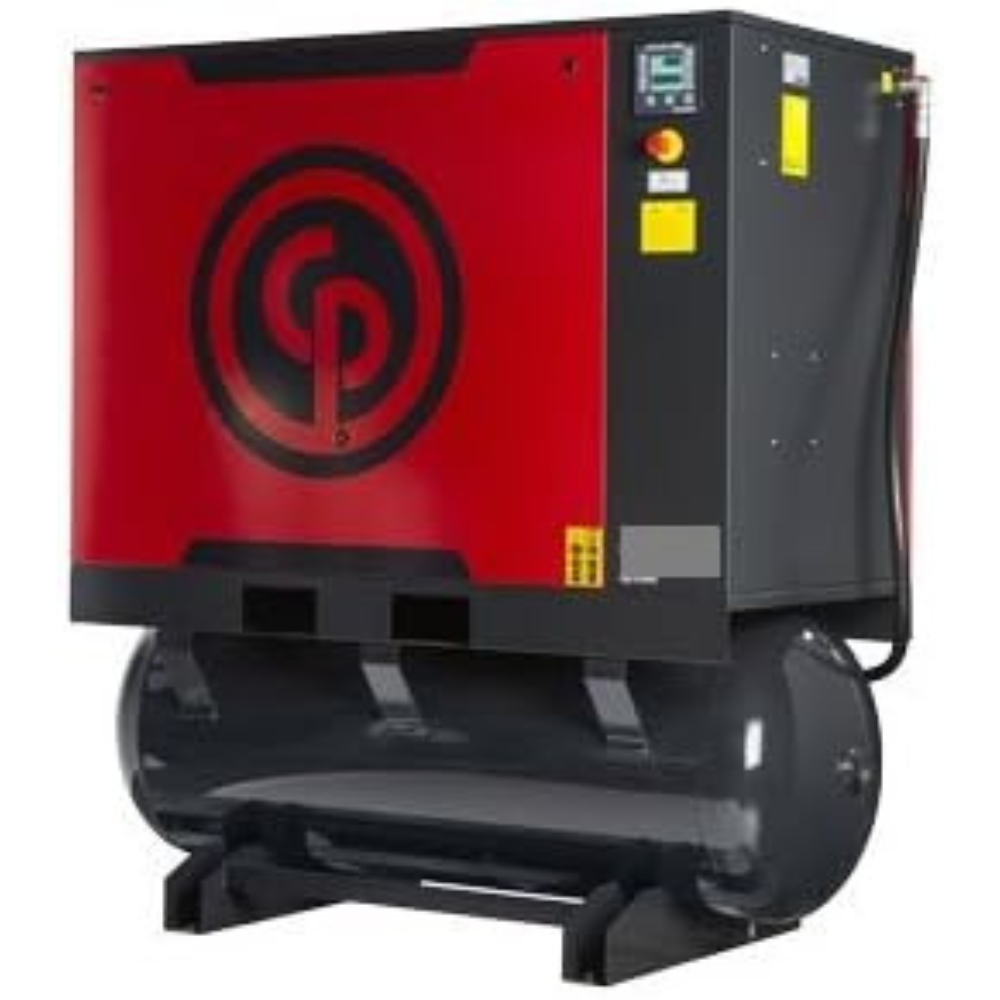

Chicago Pneumatic Quiet Rotary Screw Air Compressor with Dryer - 25 HP, 230 Volts, 3 Phase, Model# QRS25HPD
Description
The QRS 20-30 is a rugged, rotary screw air compressor that combines proven design with superior performance. Ideal for automotive and industrial applications, the QRS is engineered and built to support the most demanding requirements. Every QRS 20-30 can be supplied either base mounted or tank mounted on a 132 gallon receiver tank, and with or without an integrated air dryer. This option can save vital floor space and provide a continuous supply of quality compressed air. Installation into every application is quick and easy - simply supply power to the electrical panel, connect your discharge piping and you’ll have instant access to high quality compressed air.
Standard Features:
- Low sound enclosure
- Wye-Delta, reduced voltage start
- ES4000 Basic Controller
- Continuous operating capability
- 3-phase, 208-230/460V
- Space saving design, <16 sq. ft.
- Load/no-load with intelligent shutdown
- Spin-on oil filter and separator
- NEMA 1 electrical protection
- Vibration isolated assembly • UL and cUL-approved control panel
- Permanently aligned belt drive system
Chicago Pneumatic Air Compressor FAQs
What is comprised of a professional air compressor system?
A professional air compressor system typically includes the compressor itself, an air receiver tank, a filtration system, and various accessories such as hoses and fittings. In some cases, it may also include a dryer to remove moisture from the compressed air. The Chicago Pneumatic QRS Rotary Screw Air Compressor comes with all of these components to provide a complete and efficient air compression solution.
Are piston compressors or screw compressors better for a garage?
It depends on the specific needs and requirements of your garage. While piston compressors are typically more affordable, screw compressors like the Chicago Pneumatic QRS offer higher efficiency and reliability for industrial and commercial applications. They also have a smaller footprint, making them ideal for space-constrained environments like garages.
Can the Chicago Pneumatic QRS Rotary Screw Air Compressor be operated in a quiet manner?
Yes, the QRS compressor is designed with sound levels ranging from 64 to 71 dBA, making it one of the quieter options on the market. This allows for a more comfortable and quieter working environment compared to other compressors that can reach up to 90 dBA.
How does the Q-Controller system benefit compressed air products?
The Q-Controller system is an intelligent control system that allows for remote monitoring and control of the compressor. This feature provides real-time operational data and helps identify potential issues before they become major problems. By optimizing the compressor settings, it also helps to reduce energy consumption and prolong the life of the compressor.
What are some factors to consider when choosing an air compressor?
When choosing an air compressor, it is important to consider factors such as the required CFM (cubic feet per minute) for your specific applications, the type of power source (electric or gas), and the size and noise level of the compressor. It is also important to consider the brand reputation and warranty offered by the manufacturer. Additionally, evaluating long-term maintenance and energy costs should also be taken into account.
Are there any special maintenance requirements for the Chicago Pneumatic QRS Rotary Screw Air Compressor?
The QRS compressor features a low-maintenance design with an oil-sealed rotary screw element that requires minimal maintenance. However, regular maintenance tasks such as changing filters and oil should still be performed according to the manufacturer's recommendations to ensure optimal performance and longevity of the compressor.
How does the Chicago Pneumatic QRS Rotary Screw Air Compressor compare to other brands in terms of efficiency and reliability?
Chicago Pneumatic has built a reputation for producing high-quality and reliable compressed air products. The QRS compressor is no exception, with its durable construction and efficient design. In comparison to other brands, the QRS compressor offers competitive efficiency and reliability, with many satisfied customers praising its performance and longevity. It is important to research and compare different brands and models to find the best fit for your specific needs and budget. Overall, considering Chicago Pneumatics' reputation for quality products, the QRS rotary screw air compressor can be a reliable choice for industrial or commercial applications.
Are QRS compressors oil-free compressors?
No, the QRS compressors are not oil-free compressors. They use an oil-sealed rotary screw element to compress air, which requires regular maintenance and oil changes.
Conclusion
When it comes to compressors and air treatment products you should look at the market leading manufacturer of rotary screw compressors and they have the right solution for your business. CP has a solution and the support you want from a manufacturer so order today!
