A LS wiring harness is an important component in the engine system of modern vehicles, particularly in those designed with LS engines. This wiring harness not only plays a critical role in connecting the various electronic components in the engine but also helps in the efficient functioning of the engine. It is essentially a complex network of wires that run through the engine, connecting different sensors, control modules, fuel injectors, and other electronic components. Moreover, the LS wiring harness is designed to be highly durable, and resistant to extreme temperatures and vibrations, making it a reliable and long-lasting component in a vehicle's engine system. It is also worth noting that this wiring harness is available in different configurations, depending on the specific needs of an engine or vehicle. With its ability to improve the performance, reliability, and safety of engine systems, the LS wiring harness has become an essential part of many modern vehicles, and its importance cannot be overstated.

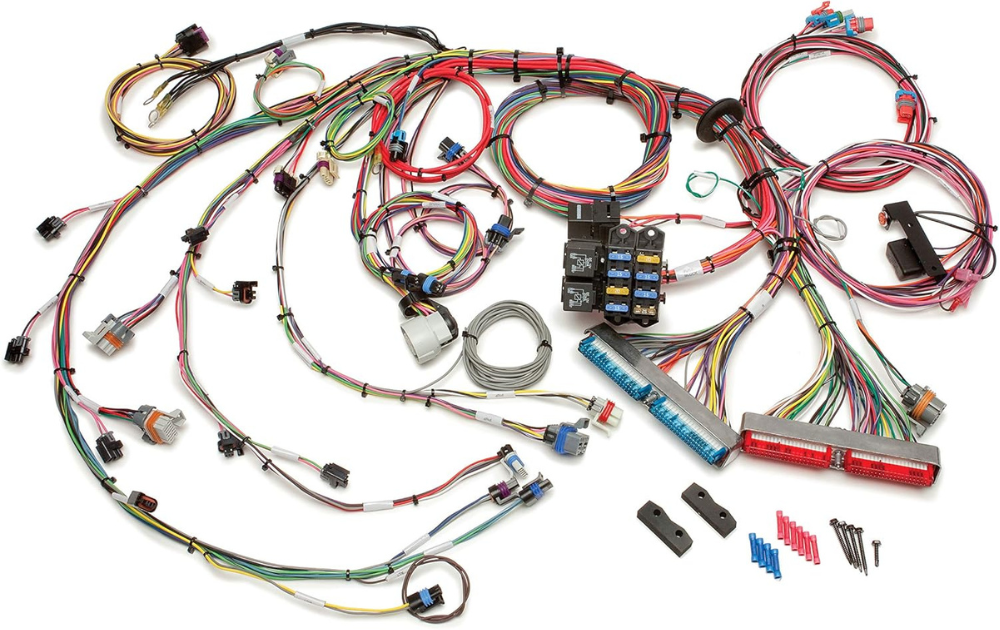

Painless Performance 60217 Standard Length EFI Harness for 1999-2006 GM Gen III 4.8, 5.3 & 6.0L w/Mechanical Throttle Body
Painless Performance
60217 Standard Length EFI Harness for 1999-2006 GM Gen III 4.8, 5.3 & 6.0L w/Mechanical Throttle Body
Introducing a standalone harness designed to enhance engine performance without replacing the OEM wiring. These standalone harnesses are specifically tailored to seamlessly run designated engine and transmission combinations when swapped into different vehicles. This particular harness is crafted for 1999-2006 4.8L, 5.3L, and 6.0L mechanical throttle body engines, utilizing an LS1/LS6 PCM with a 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, or manual transmission.
For 2003-2006 engines, please note that a mechanical throttle body installation is required. Additionally, if the engines were originally flex fuel, Delphi Multec 2 injectors (factory truck style) must also be installed. While these harnesses don't include connections for rear O2 sensors or fuel tank pressure sensors, these components are available separately.
Rest assured, its harnesses come with a 10-circuit weatherproof fuse block, GM color-coded wires with labels for effortless installation, and OEM fitment connectors and harness breakouts for the fuel injection system. The package also includes an OBDII connector, mounting bracket, check engine light, rubber grommet, and mounting hardware.
With a standard-length design, this harness allows easy placement of the fuse block and ECM, offering four feet of distance from the back of the intake manifold. Perfect for those planning to mount these components under the dash or in the glove box.

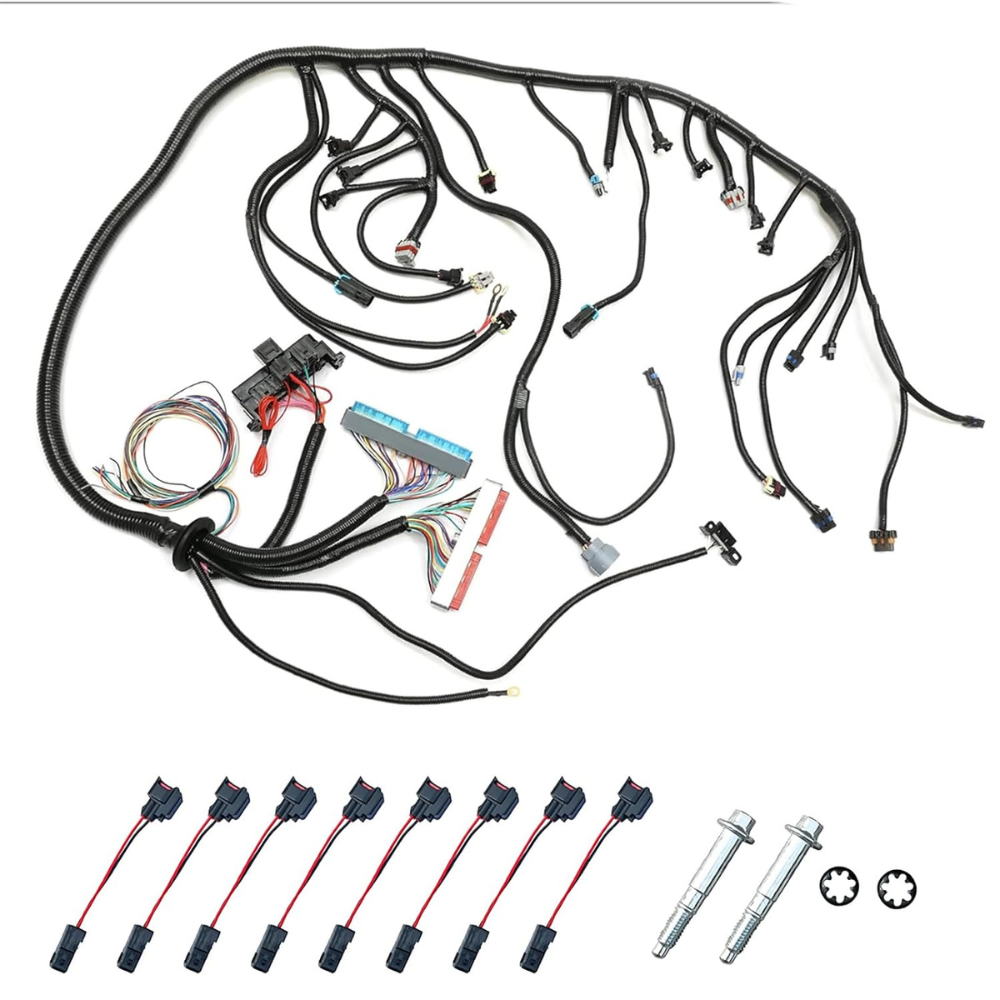

ZZCSZ LS Standalone Wiring Harness 4.8 5.3 6.0 Compatible with 1999-2006 GM Vortec Engines 4L60E with Adapter Transmissions Complete Wire Harness for Fuel Injection System DBC Engine Harness
ZZCSZ
LS Standalone Wiring Harness 4.8 5.3 6.0 Compatible with 1999-2006 GM Vortec Engines 4L60E with Adapter Transmissions Complete Wire Harness for Fuel Injection System DBC Engine Harness
This LS swap wire harness kit is the perfect solution for fuel injection systems on GM Vortec engines from 1999 to 2006. It includes all the necessary connectors for the engine and transmission sensors, as well as dash connections like the speedometer, tachometer, park neutral, malfunction indicator, TCC, and a DLC port.
This wiring harness is designed to be mounted under the dash or in the kick panel on the right side of your vehicle. It comes with a complete installation instruction packet and a compatible parts list for your convenience.
Proper grounding is crucial for the harness to operate effectively. This harness is equipped with ground wiring on the rear portion of the driver-side cylinder head and adjacent to the fuse block. We highly recommend professional installation to ensure optimal performance.
Please Note: This 4L60E wiring harness kit is specifically designed for certain engines and is not a universal replacement. Before purchasing, please check compatibility to ensure it will work with your specific setup.

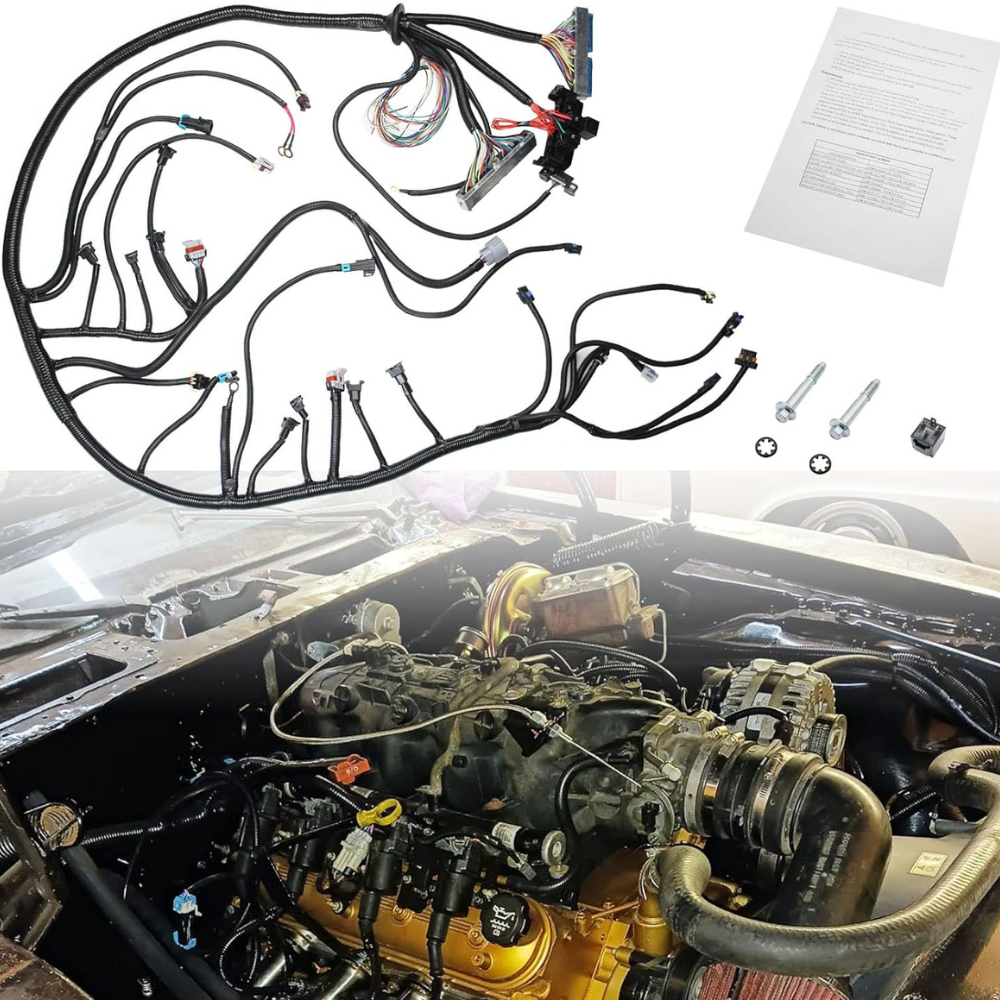

AUTO MART LS Swap Harness Engine Wiring Harness Compatible with 1997-2006 GM DBC Vortec Engine 4.8L 5.3L 6.0L, W/4L60E or 4L80E Transmission Drive by Cable
AUTO MART
LS Swap Harness Engine Wiring Harness Compatible with 1997-2006 GM DBC Vortec Engine 4.8L 5.3L 6.0L, W/4L60E or 4L80E Transmission Drive by Cable
The LS1 Engine Wire Harness is compatible with Chevy GMC vehicles from 1997-2006, specifically designed for drive-by cable LS1 engines (4.8, 5.3, 6.0) and 4L60E or 4L80E transmissions (with adapter). This high-quality wiring harness is crafted from copper core wire, ensuring corrosion resistance and excellent electrical conductivity. Its robust plastic coating can withstand high temperatures, chemicals, and more.
Experience effortless installation with a plug-and-play GM Engine Wiring Harness. The elastic wires guarantee precise connections, while the universal color-coded plugs make installation a breeze. The package includes a complete LS swap stand-alone harness, along with 2 mounting screws and an English manual.

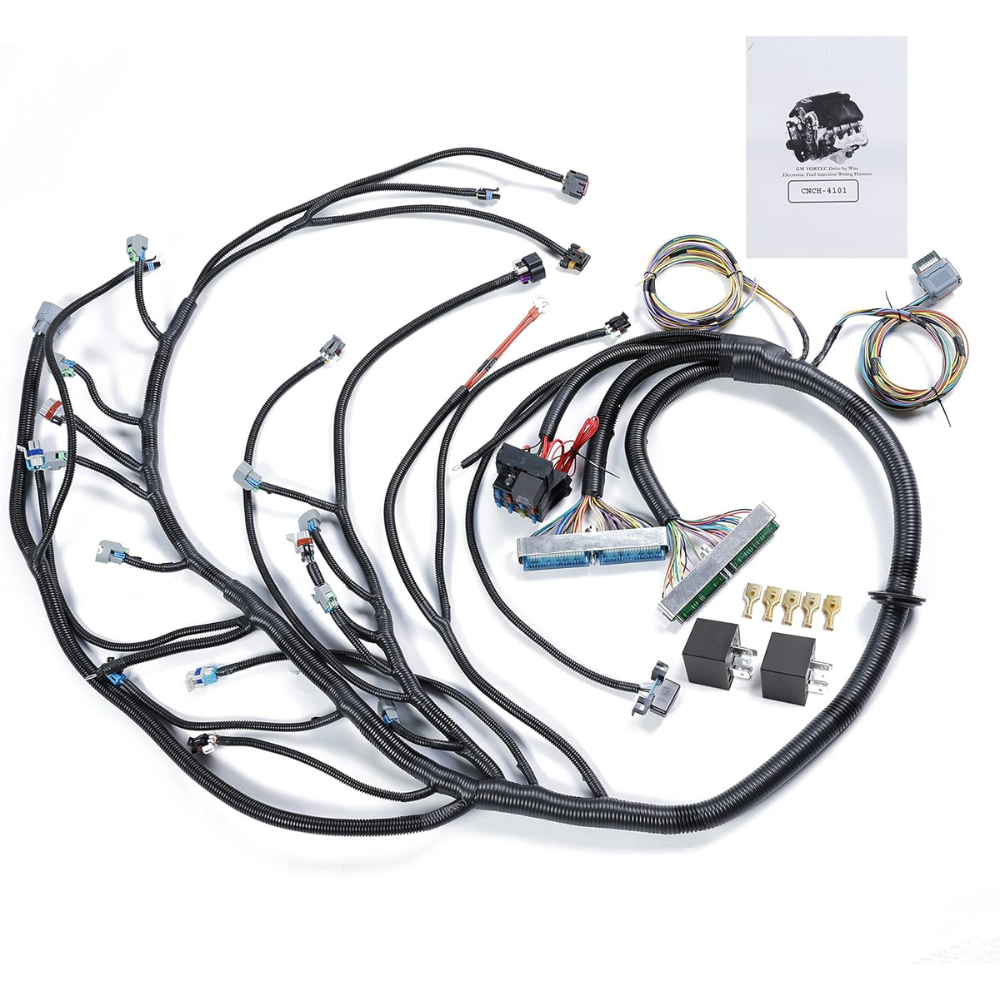

DEF Standalone Swap Wire Wiring Harness 4L60E DBW for Chevy for GMC for LS for LS3 Engine Vortec 8 Cylinders 4.8 5.3 6.0 EV6 Injector 2003-2007 (Drive by Wire), NOT Suit for EV1
DEF
Standalone Swap Wire Wiring Harness 4L60E DBW for Chevy for GMC for LS for LS3 Engine Vortec 8 Cylinders 4.8 5.3 6.0 EV6 Injector 2003-2007 (Drive by Wire), NOT Suit for EV1
This injector is not suitable for EV1 models. It is designed to fit 12-14 volt systems and is compatible with EV6 injector connectors, drive-by-wire, and 4L60E (DBW 03 04 05 06 07) transmissions. It is suitable for Vortec 8-cylinder engines using a 4L60E gearbox. This engine and transmission harness, along with an instruction manual, are included. Compatible with Chevy, GMC, Cadillac, Hummer Vortec, and LS engines.
LS Wiring Harness FAQs
Does the wiring harness control all the necessary components?
Yes, the LS wiring harness is a complete standalone unit that controls all necessary components for the engine to run properly. This includes fuel injectors, ignition coils, and sensors.
Can I use this wiring harness on any GM vehicle?
Yes, the LS wiring harness is designed specifically for Chevy and GMC vehicles from 1997-2006 with drive-by cable LS1 engines and compatible transmissions. It may also be compatible with other GM vehicles using LS engines, but compatibility cannot be guaranteed.
Is this wiring harness difficult to install?
No, our plug-and-play design makes installation of the LS wiring harness quick and easy. The color-coded wires and included instruction manual ensure a seamless installation process.
Do I need another harness for the engine coolant temp sensor, fuel pump control, alternator control, and fan controls?
No, the LS wiring harness has provisions for all necessary sensors and controls, eliminating the need for additional harnesses.
Do I need to install upstream oxygen sensors for the LS engine swap?
Yes, we recommend installing upstream oxygen sensors for optimal engine performance and emissions compliance. However, the LS wiring harness does not include these sensors.
Is the LS wiring harness compatible with aftermarket upgrades?
Yes, the LS wiring harness is designed to be compatible with a variety of aftermarket upgrades such as headers, exhaust systems, and fuel injectors. However, additional modifications may be required depending on the specific upgrades being installed.
Can I install this wiring harness without any prior experience?
While we recommend consulting a professional mechanic for installation, the LS wiring harness is designed for easy installation and can be completed by those with basic automotive knowledge. However, it is important to carefully read the included instruction manual and follow all steps correctly to ensure the proper functioning of the engine and wiring. If you have any questions or concerns during the installation process, our customer service team is always available to assist you.
Do I still need a standard fuse block?
No, a LS wiring harness includes a fuse block specifically designed for the engine swap. This fuse block is compatible with all necessary fuses and relays, making the installation process simpler and more efficient. Additionally, it ensures that all electrical components are protected in case of any issues or malfunctions. However, if you plan on installing additional aftermarket electronics or accessories, a separate fuse block may be necessary. We recommend consulting with a professional or doing thorough research before making any modifications to the wiring system.
Does the harness also used for automatic transmission control?
Yes, a LS wiring harness is designed to work with both manual and automatic transmissions. However, depending on the specific transmission being used, additional modifications may be required. Most of the harnesses include provisions for both types of transmission control systems, making them versatile and compatible with various setups.
Conclusion
In conclusion, the LS wiring harness is a comprehensive solution for engine swaps that simplifies the installation process and ensures the proper functioning of the engine and its components. The harness includes a fuse block specifically designed for the swap, making it unnecessary to use a standard fuse block. It also supports both manual and automatic transmission control systems, with provisions for various setups.
One important aspect to note is that the harness may not have provisions for certain sensors, such as the MAP sensor, MAF sensor, or camshaft position sensor. In such cases, additional modifications or wiring may be required to integrate these sensors into the system. We recommend consulting with a professional or conducting thorough research before making any modifications to ensure the proper functioning of the engine and its components.
So whether you're looking to upgrade your classic car, build a custom race car, or simply replace a worn-out engine, our wiring harness is designed to meet your needs and make the process smoother and more efficient. Happy driving!
