When it comes to building or rebuilding LS engines, precision is everything. Even the smallest misalignment can lead to performance issues, oil leaks, or worse—damage to major engine components. One often-overlooked, yet critical, aspect of the engine assembly is ensuring proper alignment of the LS timing cover. This is where the LS Timing Cover Alignment Tool earns its stripes. For automotive enthusiasts and mechanics alike, this tool goes beyond convenience—it is essential in guaranteeing your LS engine performs at its peak. This blog will cover what the LS Timing Cover Alignment Tool is, how it works, why it's indispensable, and a detailed step-by-step guide on using it effectively.
What Is the LS Timing Cover Alignment Tool?
The LS Timing Cover Alignment Tool is a specialized piece of equipment designed to ensure that the timing cover (and, in some cases, the rear main cover) is perfectly aligned during installation. Proper alignment is critical because these covers house important oil seals that prevent leaks, as well as support engine components such as the crankshaft and camshaft. Any minor misalignment can cause premature wear on seals or lead to oil leaks that compromise engine reliability. This tool simplifies the alignment process by centering the timing cover or rear cover around the crankshaft. It ensures that everything is properly positioned before securing the bolts, taking the guesswork out of this crucial step.
Why Is the Timing Cover Alignment Tool Essential?
When assembling LS engines, even seasoned mechanics must contend with the small tolerances required for optimal performance. Without proper alignment, you're risking:
- Oil Leaks – A misaligned timing cover can cause the crankshaft seal to wear unevenly, leading to oil seepage.
- Premature Seal Failure – Poor alignment increases stress on the seal, shortening its lifespan and causing unexpected engine tear-downs.
- Performance Degradation – Any imbalance or misalignment can interfere with smooth engine operation, reducing overall performance. By using the LS Timing Cover Alignment Tool, you ensure that these issues are avoided entirely. It's a simple yet crucial step in building an engine that runs smoothly and reliably for years to come.

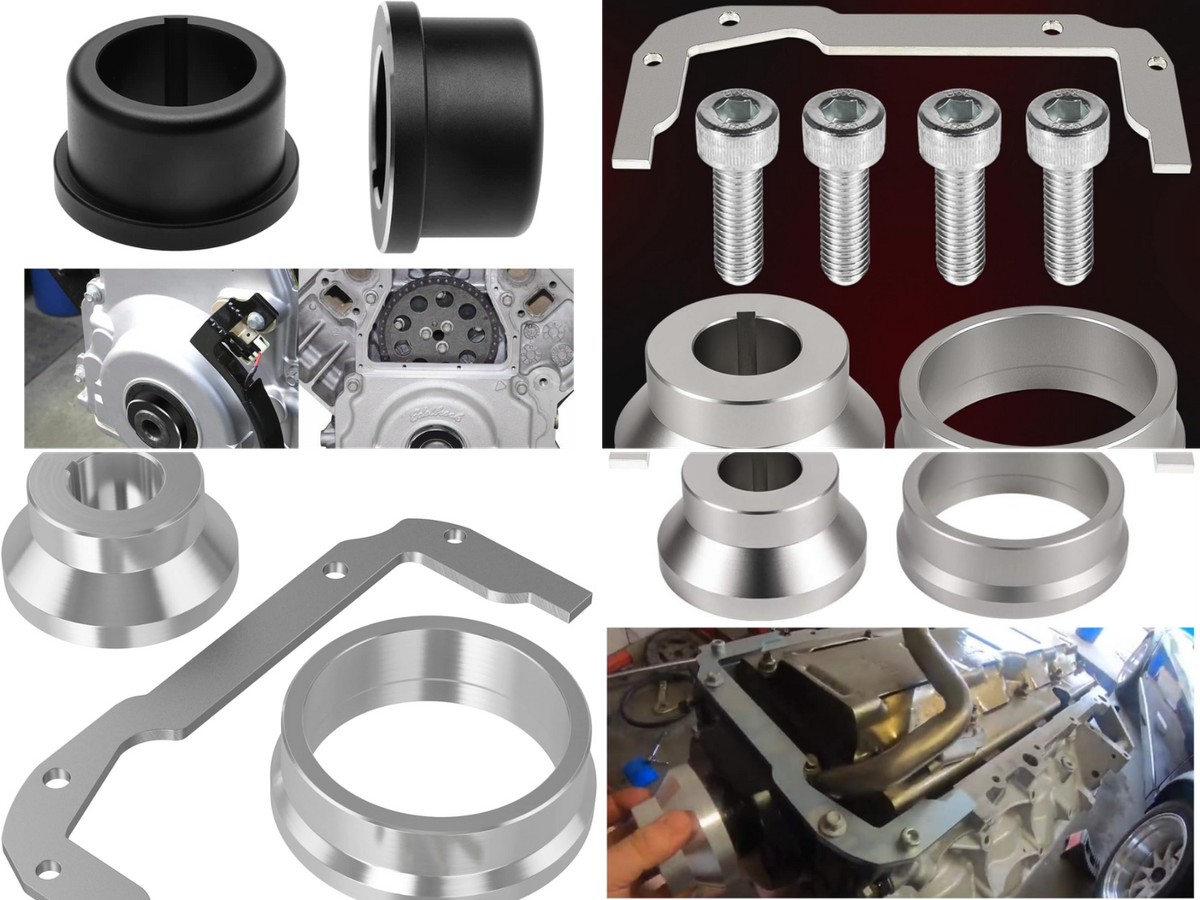

How to Use the LS Timing Cover Alignment Tool
Using the LS Timing Cover Alignment Tool is straightforward, but following the proper steps is key to achieving the best results. Here’s a step-by-step guide to help you use it efficiently:
Step 1: Gather Your Tools
Before starting the process, gather the necessary tools. Besides the LS Timing Cover Alignment Tool, you’ll need:
- A torque wrench
- A socket set
- RTV silicone (if specified for your build)
- Replacement seals (if applicable)
Step 2: Prep the Timing Cover
Start by ensuring the timing cover is clean and free from old sealant, dirt, or debris. If you’re replacing the crankshaft seal, press it into place on the timing cover before moving forward.
Step 3: Position the Timing Cover
Install the timing cover loosely on the engine block using the bolts, but don’t tighten them yet. The cover should be able to move slightly, as this will help with alignment.
Step 4: Install the Alignment Tool
Attach the LS Timing Cover Alignment Tool to the crankshaft snout. The tool’s circular shape ensures it perfectly centers the timing cover around the crankshaft opening. Slide it into place, making sure it sits snugly between the crankshaft and the seal.
Step 5: Tighten the Bolts
With the alignment tool holding the timing cover in place, tighten the bolts on the cover in a crisscross pattern to ensure even compression. Use your torque wrench to tighten the bolts to the manufacturer’s specifications.
Step 6: Remove the Alignment Tool
Once the bolts are fully tightened, remove the alignment tool carefully. Double-check the crankshaft seal to ensure it sits evenly in the timing cover opening.
Step 7: Inspect Your Work
Finally, inspect the timing cover and alignment one last time. Look for any gaps, misalignments, or uneven areas around the crankshaft seal. If everything looks good, you’re ready to move on with the rest of your engine assembly.
Benefits of Using the LS Timing Cover Alignment Tool
This tool is a small investment that pays off big when it comes to engine performance and longevity. Here are the top benefits:
- Guaranteed Seal Integrity – Proper alignment ensures even wear and a tighter seal around the crankshaft, preventing leaks.
- Smooth Assembly Process – The tool eliminates guesswork, making installation faster, easier, and more accurate.
- Prevention of Costly Repairs – Misalignment can lead to significant issues, such as leaks or seal failures, which can be costly and time-consuming to fix later.
- Peace of Mind – When you use an alignment tool, you know the job is done right. That confidence is invaluable for both DIY enthusiasts and professional mechanics.
Pro Tips for Best Results
- Use Quality Seals – Don’t skimp on replacement seals. High-quality seals last longer and perform better under pressure, giving your engine superior protection.
- Follow Torque Specs – Improper torquing can cause uneven pressure on the cover, ruining the alignment. Always use a torque wrench and follow the manufacturer’s specifications.
- Double-checkthe the Fit – After removing the alignment tool, always inspect the cover, seals, and alignment before proceeding to the next step.

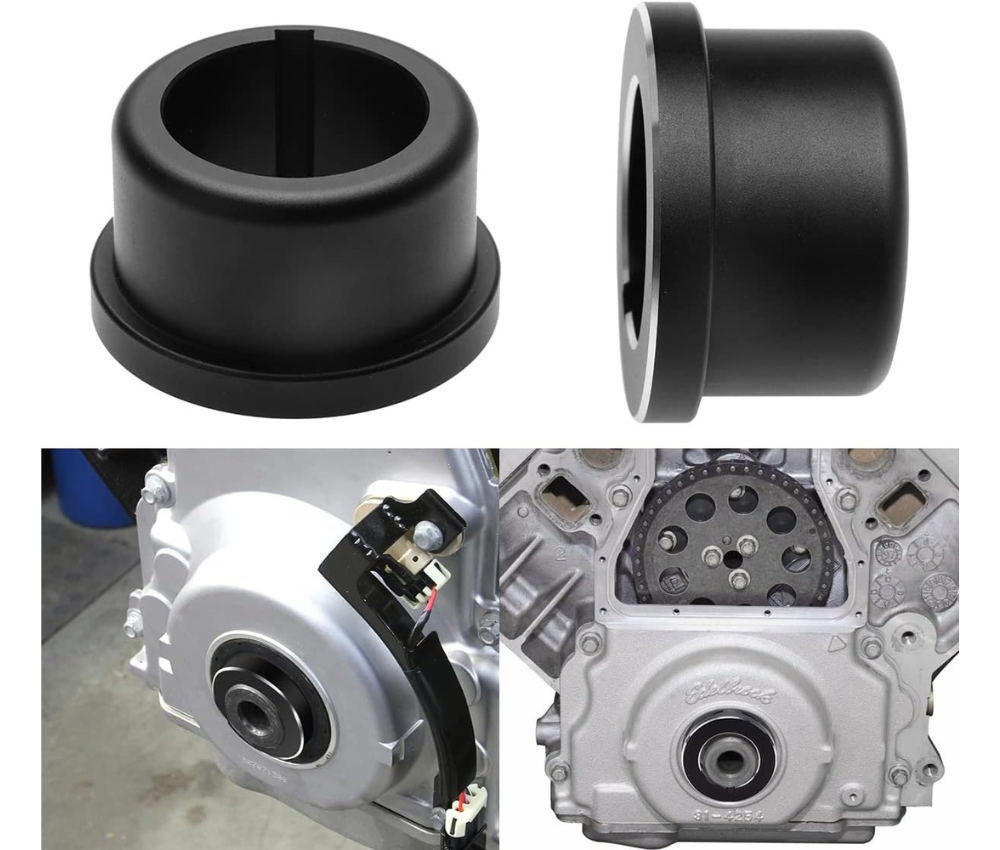

URLWALL LS Timing Cover Alignment Tools & Seal Installer Seal Kit, Front Rear Cover Alignment Tool Kit Fit for LS Series Engines Ls1 Ls2 Ls3 Ls6 Ls Lq4 Lq9 4.8 5.3 5.7 6.0 6.2 (Black)
- FUNCTION - Here is a very effective tool to help you make easy work of properly aligning your timing cover with your crankshaft to prevent premature seal failures.
- FITS - Timing Cover Alignment Kit Fit for LS series engines Ls1 Ls2 Ls3 Ls6 Ls Lq4 Lq9 4.8 5.3 5.7 6.0 6.2. Perfect for engine builders and mechanics to replace the front or rear main seal for the GM LS series engine.
- QUALITY - Crafted from Billet aluminum & Quality steel with great durability and tight tolerances for a perfect alignment.
- INSTALLATION - Easily align your timing cover seal in seconds by sliding this tool over your crankshaft then tighten your timing cover bolts and oil pan! Having the seal centered accurately with the crank minimizes the chance of seal leakage.
- OCCASIONS - Perfect for engine builders and mechanics to replace the front or rear main seal for the GM LS series engine. The front and rear cover billet alignment tool kit helps align the front and rear engine covers to make sure the cover is centered.

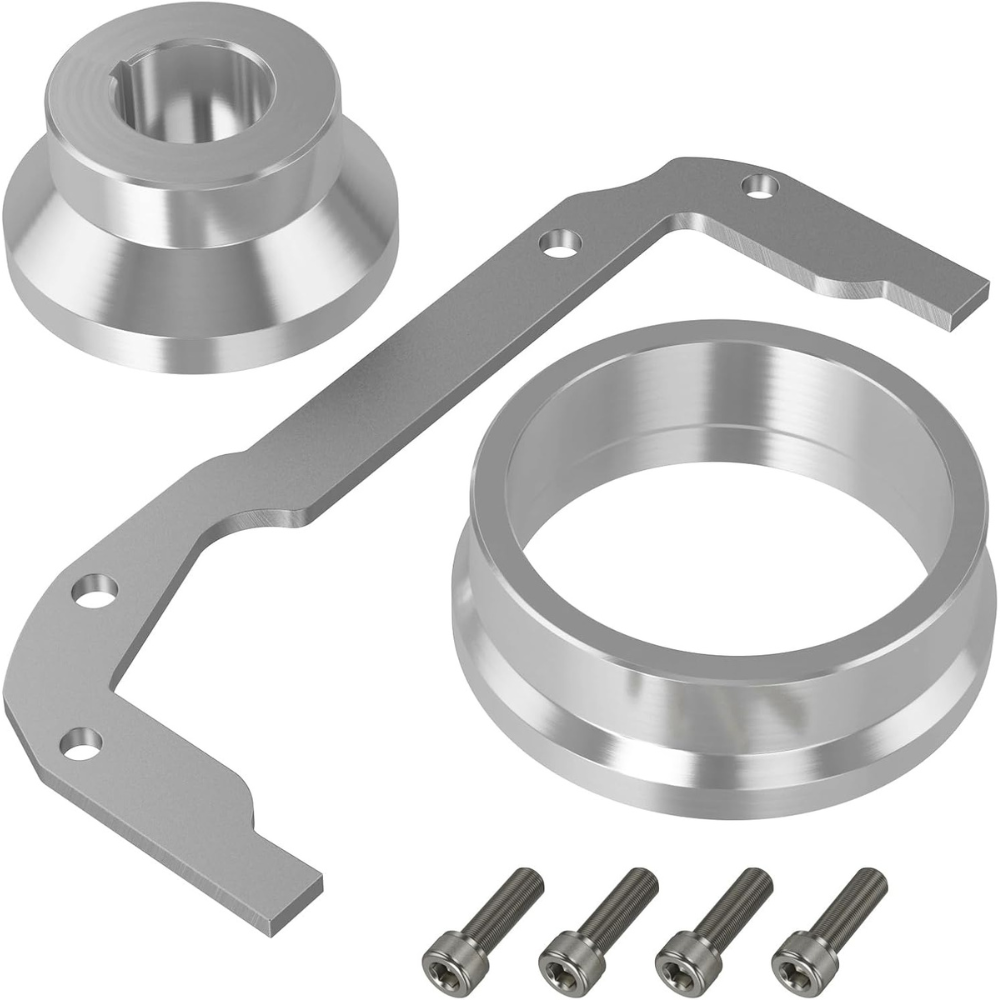

Moker LS Rear Main Seal Alignment Tool, Front Cover Alignment Tools & Oil Pan Front Cover Alignment Tool Kit for GM LS Engine 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92
Moker
LS Rear Main Seal Alignment Tool, Front Cover Alignment Tools & Oil Pan Front Cover Alignment Tool Kit
- Perfect Fit for GM LS Engines: Specifically designed for GM LS engines, including 4.8, 5.3, 5.7, 6.0, LS1, LS2, LS3, LS6, L99, LS4, LS9, LSA, LQ4, LQ9, L76, and L92 models. Ensure precise alignment for reliable performance.
- Critical Alignment Tool: This tool mimics the oil pan to provide accurate alignment of the oil pan and front cover. It works seamlessly with the front cover alignment tool for a hassle-free installation.
- Essential for Seal Longevity: Ensures front and rear seals with Teflon inner sealing lips are perfectly aligned, maintaining their function and longevity. Proper alignment also supports block rigidity by ensuring the oil pan, front cover, and rear cover are perfectly positioned.
- Durable Billet Aluminum Construction: Crafted from high-quality billet aluminum for durability and precision. Tight tolerances guarantee accurate alignment, making it an essential tool for engine builders and mechanics.
- Complete Kit for LS Engine Maintenance: Includes 1x Oil Pan Front Cover Alignment Tool, 1x Front Cover Billet Alignment Tool, and 1x Rear Cover Billet Alignment Tool. A must-have for replacing the front or rear main seal on GM LS series engines.

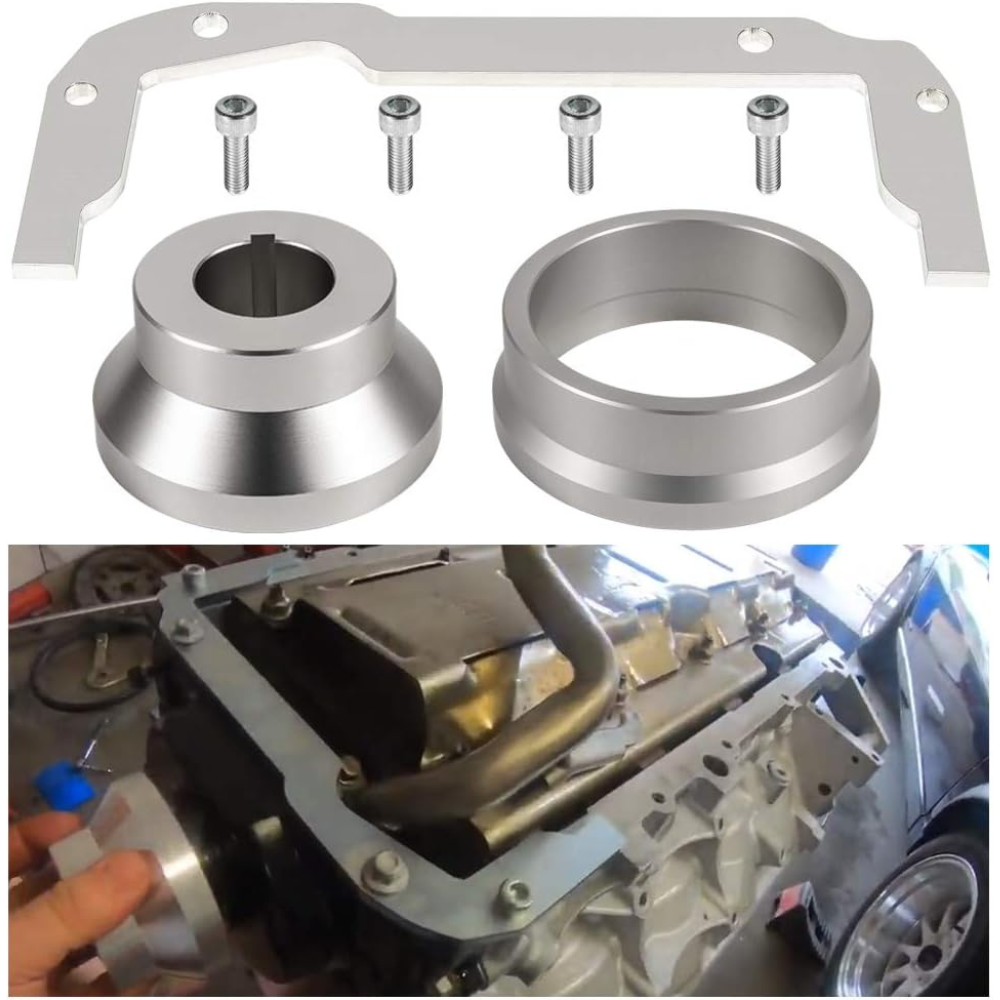

Bonbo Front and Rear Cover Billet Alignment Tool & Oil Pan Alignment Tool Fits for LS Series Engines 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS9 LSA LQ4
Bonbo
Front and Rear Cover Billet Alignment Tool & Oil Pan Alignment Tool Fits for LS Series Engines
- The front & rear cover and oil pan alignment tool set is perfectly compatible with GM LS series engine 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS4 LS6 LS7 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92.
- This front and rear cover billet alignment tool kit helps easily align the front and rear engine covers to make sure the cover is centered, allowing you to properly install the seal to avoid leaks. In addition, can center/align the cover on the front seal or locate it on the inside diameter of the seal bore in the cover without the seal installed? A centered cover means less of a chance for a seal to leak.
- This tool mimics the balancer and oil pan to provide critical alignment of the oil pan and front cover, designed to be used in conjunction with the front cover alignment tool. For the LS engine, the oil pan is a stressed member and adds to block rigidity. Due to this reason, it can't simply be slapped in place, you will have to align the front and rear engine covers to the oil pan carefully.
- Made from top-quality Aluminum for great strength, prevents corrosion and rust, impact resistance, tight tolerances for perfect alignment, and ensures long-term reliable service. Perfect for engine builders and mechanics to replace the front or rear main seal for the GM LS series engine.
LS Timing Cover Alignment Tool FAQs
Why do I need a tool to install my timing cover?
The timing cover and rear cover on GM (General Motors) LS series engines don't have any dowel pins to ensure correct alignment to the centerline of the crankshaft & this often leads to annoying leaks.
Can I use the front cover and oil pump tools to work with the block still in the vehicle?
Yes, the LS Timing Cover Alignment Tool Kit is designed to be used while the engine block is still in the vehicle. This makes it much easier and more convenient for engine builders and mechanics.
Will this tool work with all LS series engines?
Yes, this tool kit is compatible with all GM LS series engines including LS1, LS2, LS3, LS6, LQ4, LQ9, and more. It can also be used on both front and rear covers.
Can I use this tool for applications other than just installing seals?
Absolutely! This alignment tool kit can also be used to properly align the cover when changing out camshafts or any other maintenance or repair tasks.
Final Thoughts
The LS Timing Cover Alignment Tool is one of those tools that might seem optional—until you realize how much value it truly brings to the table. It’s an essential ally for anyone assembling or rebuilding LS engines. By ensuring precise timing cover alignment, this tool protects against oil leaks, seal failures, and performance degradation, so your engine runs like a dream. Whether you’re a seasoned mechanic or a DIY car enthusiast, the LS Timing Cover Alignment Tool belongs in your toolbox. It’s quick to use, affordable, and helps eliminate one of the most common issues in engine builds. A properly aligned timing cover isn’t just about keeping oil where it belongs—it’s about delivering the performance and reliability every LS engine deserves.
